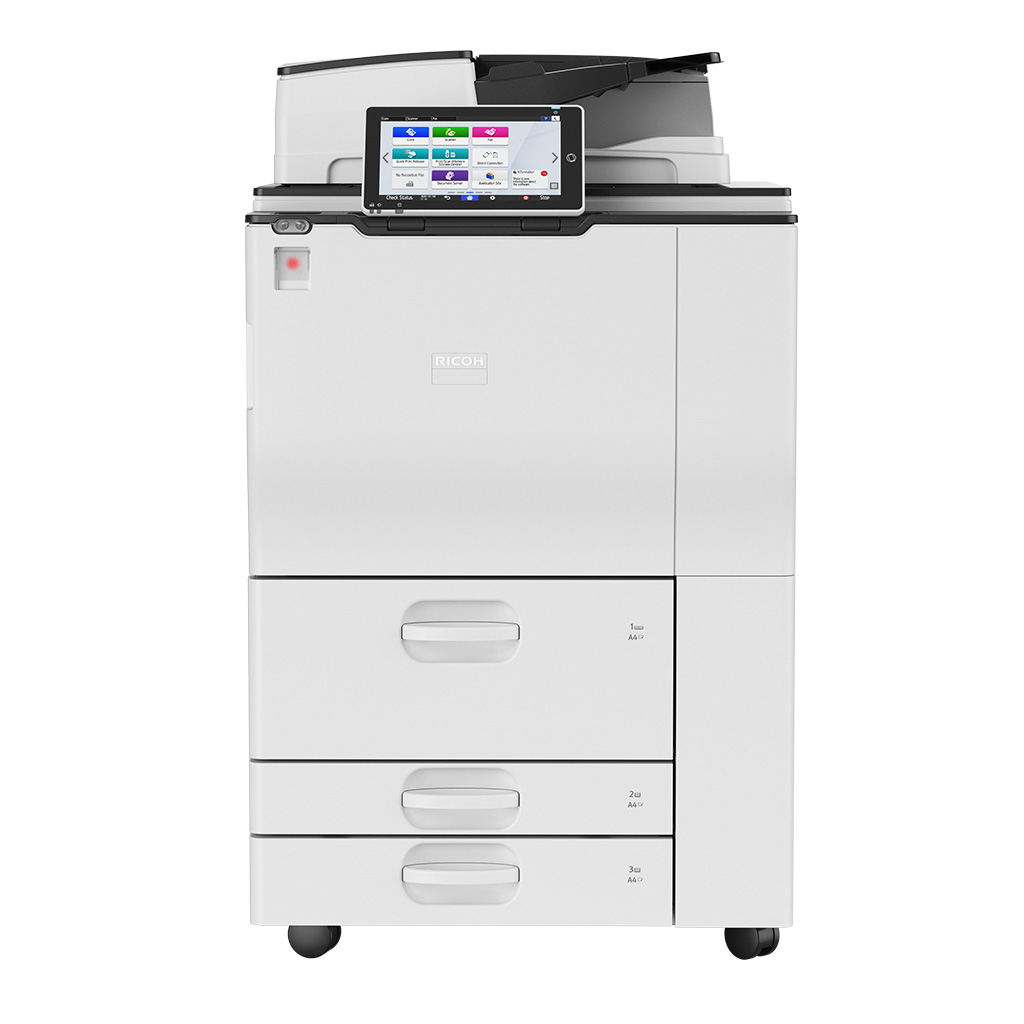

    IM 7000 A3 black and white multifunction printer

    • Copy, print, scan, optional fax
    • Prints up to 70 ppm
    • 8,700-sheet max input
    • RICOH Always Current Technology

    Work smart with instant support

    Automated upgrades, RICOH Intelligent Support* and RemoteConnect Support mean less reliance on service calls and more rapid solutions provided remotely. IT managers can even use the Remote Panel Operation Tool in-house to address fleet issues.

    *When enabled, internet connection required.

    Professional prints and quick & secure document transfers

    Send invoices, contracts and statements digitally and securely. Simply scan documents to email or fax using data encryption, and require user authentication for an extra layer of security. When it comes to professional hardcopy documents like reports and brochures, choose from a wide range of finishing options including hole punching, folding, sorting and stapling. Access all this functionality from your smartphone or tablet for better time management.


    1. Fast scanning speeds
      Send 220 black & white and 240 colour scans per minute effortlessly.
    2. Versatile paper choices
      Print on paper stock from weights as thin as 52g/m2 or as thick as 300g/m2.
    3. No waiting around on prints
      First print ready in under 5 seconds.
    4. Digitise your hardcopies in editable file formats
      Simply scan to convert cumbersome paper documents into ever ready Excel, Word or PDF documents.

    Download PDF brochure


    Specifications

    Các tính năng
    Copy, print, scan, optional fax
    Bộ nhớ
    320 GB
    Bộ nhớ - chuẩn
    4 GB—2 GB mainframe + 2 GB Smart Operation Panel
    Màn hình điều khiển
    10.1-inch Smart Operation Panel (G2.5)
    Kích thước vật lý (Rộng x Sâu x Cao) - phần máy chính
    690 x 883 x 1,161 mm
    Trọng lượng - thân máy chính
    200 kg
    Dung lượng giấy đầu vào chuẩn (tờ)
    4,300
    Dung lượng giấy đầu vào tối đa (tờ)
    8,700
    Dung lượng giấy đầu ra tối đa (tờ)
    3,500
    Cấu hình giấy đầu vào - chuẩn
    1,550-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit
    Loại giấy hỗ trợ

    Plain paper1, recycled paper, colour paper 1–2, special paper, letterhead, bond paper, tracing paper, label, plain paper 1–2, middle thick, thick paper 1–4

    1—Not displayed as paper type

    Kích thước giấy tối đa
    A3
    Định lượng giấy (g/m2)
    52.3–300
    Giao diện - chuẩn
    Mainframe
    10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
    USB 2.0 Host Type A—2 ports
    USB 2.0 Device Type B—1 port

    Smart Operation Panel
    IEEE 802.11 b/g/n (Wireless LAN)1
    Bluetooth 4.22
    SD Card Slot—SDHC memory card
    USB Host Type A—USB Flash memory
    USB Host Type A—1 port for USB keyboard (optional)2
    USB Host Type mini B—for NFC card reader (optional)2
    NFC Tag2

    1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
    2—Cannot be used for printing
    Giao diện - tùy chọn

    IEEE 1284
    IEEE 802.11 a/b/g/n (Wireless LAN)
    Device Server Option Type M37 (additional NIC port)
    Copy Connector Type M25

    Giao thức mạng - chuẩn
    TCP/IP (IPv4, IPv6)
    Tốc độ sao chụp
    70 cpm
    Thời gian sao chụp bản đầu tiên
    3.2 seconds
    Độ phân giải sao chụp
    600 x 600 dpi—scanning
    1,200 x 1,200 dpi—printing
    Phạm vi thu-phóng
    25%–400% in 1% steps
    Tỷ lệ phóng to
    400%, 200%, 141%, 122%, 115%
    Tỷ lệ thu nhỏ
    93%, 82%, 75%, 71%, 65%, 50%, 25%
    Sao chụp hai mặt
    Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
    Sao chụp sách
    Booklet, magazine, layout, and booklet
    Sao chụp thẻ căn cước, chứng minh thư
    Supported
    Tốc độ in trắng đen
    70 ppm
    Thời gian ra bản in đầu
    4.7 seconds or less
    Độ phân giải in
    300 x 300 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
    Ngôn ngữ mô tả trang (PDLs)

    Standard
    PCL 5e, PCL 6, PostScript3 emulation, PDF Direct emulation

    Optional
    Adobe PostScript 3, Adobe PDF Direct, XPS, IPDS

    Trình điểu khiển in

    PCL 6, PostScript3 emulation

    In hai mặt
    Standard
    In ấn di động
    RICOH Smart Device Connector
    In từ USB/thẻ nhớ SD
    Supported
    Tốc độ scan
    Via SPDF
    120 ipm—simplex
    240 ipm—duplex
    Phương pháp scan
    Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)
    Scan màu
    Standard
    Độ phân giải scan
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
    Note: Maximum scan size for 1,200 dpi is A5.
    Scan theo định dạng tệp
    Single- and multi-page TIFF
    Single-page JPEG
    Single- and multi-page PDF, PDF/A
    Single- and multi-page High-Compression PDF
    Scan đến email

    Protocols
    SMTP gateway, TCP/IP

    Authentication
    SMTP authentication, POP before SMTP authentication

    Scan resolution
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

    Scan to email file types
    Single-page
    TIFF, JPEG, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

    Multi-page
    TIFF, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

    Note: Optional OCR unit is required to support scanning to a searchable PDF.

    Scan đến thư mục

    Protocols
    SMB, FTP, WSD (Web Services on Devices for Scanning)

    Security
    Client folder logon, transmission encryption of logon name and password

    Resolution
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

    Search for client folders
    SMB—browsing directly to the designated folder
    FTP—by folder name

    Scan to folders file types
    Single-page
    TIFF, JPEG, PDF, PDF/A, High-Compression PDF

    Multi-page
    TIFF, PDF, PDF/A, High-Compression PDF

    Scan dạng TWAIN
    Scan mode
    Standard, Photo, OCR, Filing

    Scan resolution
    100–1,200 dpi
    Note: Maximum scan size for 1,200 dpi is A5.
    Các kiểu fax
    G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
    Mạch fax
    PSTN, PBX
    Độ tương thích
    ITU-T (CCITT), G3—maximum 3 lines
    Tốc độ của bộ phát tín hiệu fax
    2,400 bps–33.6 Kbps—G3, standard with automatic shift down
    Phương thức nén
    MH, MR, MMR, JBIG
    Độ phân giải fax

    Standard Mode
    200 x 100 dpi—8 x 3.85 lines/mm

    Detail Mode
    200 x 200 dpi—8 x 7.7 lines/mm

    Super Fine Mode
    400 x 400 dpi—8 x 15.4 lines/mm
    400 x 400 dpi—16 x 15.4 lines/mm

    Note: Super fine mode is supported with the optional SAF memory.

    Tốc độ truyền tín hiệu fax G3
    2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
    3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
    Dung lượng bộ nhớ SAF
    Standard—4 MB, approximately 320 pages
    With optional SAF memory—60 MB, approximately 4,800 pages
    Sao lưu bộ nhớ fax
    1 hour
    Quay số nhanh
    2,000 numbers
    DataOverwriteSecurity System (DOSS) - Chuẩn
    Yes
    DataOverwriteSecurity System (DOSS) - Tùy chọn
    Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
    Mã hoá
    PDF, Secure print encryption
    Authentication password encryption
    Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
    Xác thực
    802.1x wired authentication
    IEEE 802.11i security (WEP, WPA)
    IPv6
    Quota setting/Account limit
    User authentication—Windows and LDAP via Kerberos, basic, user code
    User code authentication
    Wi-Fi Protected Setup (WPS) support
    Windows
    Windows 7
    Windows Server 2008
    Windows Server 2008 R2
    Windows 8.1
    Windows Server 2012
    Windows Server 2012 R2
    Windows 10
    Windows Server 2016
    Windows Server 2019
    Macintosh
    OS X Native v10.12 or later—PostScript 3 only
    Unix
    Sun Solaris—10
    HP-UX—11.x, 11iv2, 11iv3
    Red Hat Linux—Enterprise v4, v5, v6
    SCO OpenServer—5.0.7, 6.0
    IBM AIX—6.1, 7.1, 7.2
    SAP
    Environment—R/3, S/4
    Platform—SAP R/3 (Release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
    Page Description Language (PDL)—PCL
    Character set—Latin-1, Latin-2, Unicode
    Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS Postnet, UPC/EAN
    OCR fonts—OCR A, OCR B
    Other supported features—Input/Output Bin, Duplex, Stapling, Punching, Resolution, Collation, EconoMode / TonerSaving, Smoothing, Page Protect, Auto Tray Change/Optional Tray Select, User Authentication
    Tiêu chuẩn
    @Remote Embedded
    Web Image Monitor
    Tùy chọn
    @Remote
    Streamline NX v3
    Global Scan NX
    Card Authentication Package
    Enhanced Locked Print NX
    Device Manager NX Lite
    Device Manager NX Accounting
    Printer Driver Packager NX
    @Remote Connector NX
    Ứng dụng di động
    RICOH Smart Device Connector
    Nguồn điện
    220–240 V, 8.5 A, 50/60 Hz
    Mức độ tiêu thụ điện
    1,900 W or less—maximum power
    1,140 W or less—operating power
    400 W or less—Ready Mode
    163 W or less—Low Power Mode
    0.6 W or less—Energy Saver Mode (Sleep Mode)
    Mức tiêu thụ điện năng (TEC)
    1.326 kWh
    Thời gian khởi động lại
    20 seconds or less
    Chế độ tiết kiệm năng lượng
    1 minute shift time—Energy Saver Mode (Sleep Mode)
    1 minute shift time—Low Power Mode
    Thời gian phục hồi
    20 seconds—Energy Save Mode (Sleep Mode)
    10 seconds—Low Power Mode
    Các tính năng hệ điều hành khác
    Eco-friendly indicator, Energy Saver Timer
