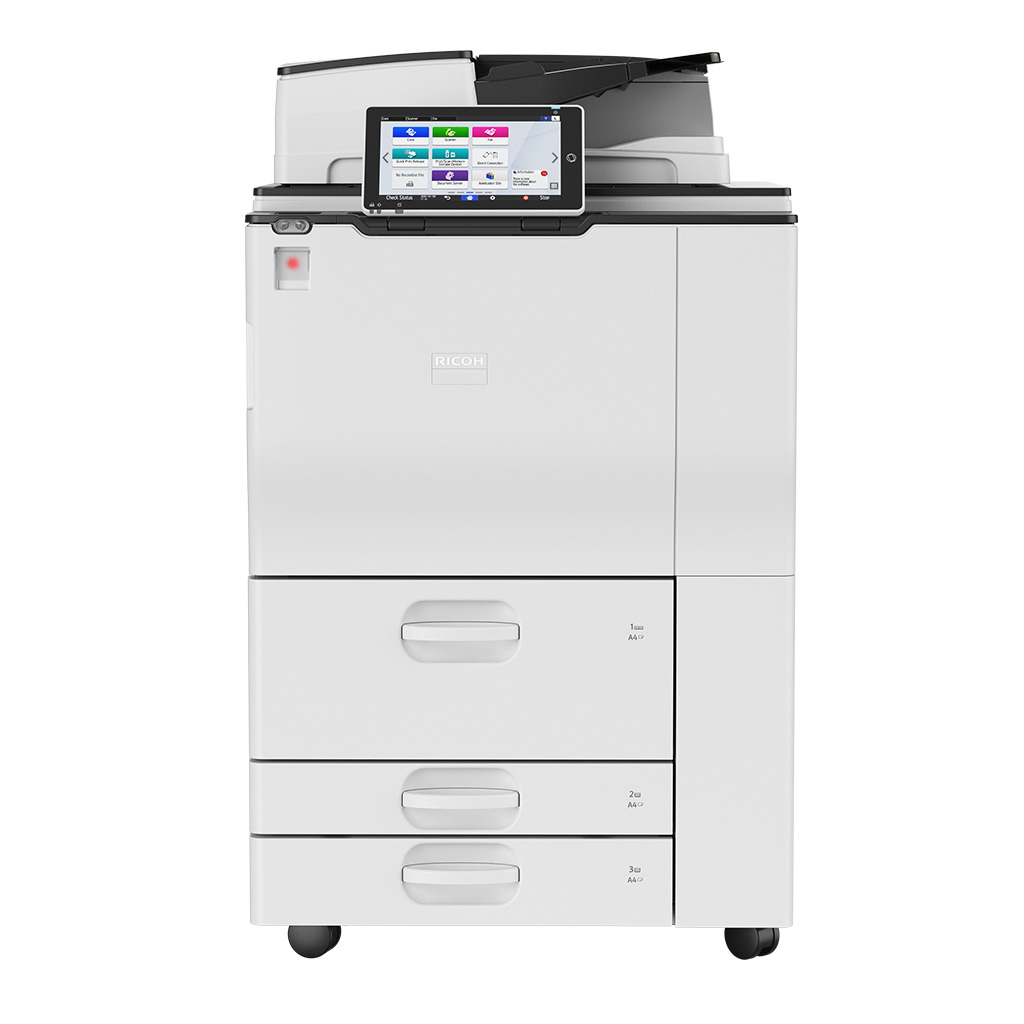

    IM 7000 A3 black and white multifunction printer

    • Copy, print, scan, optional fax
    • Prints up to 70 ppm
    • 8,700-sheet max input
    • RICOH Always Current Technology
    Configure your device here
    Related Links
      For a business on the move
      Heavy print requirements shouldn’t slow you down and neither should remote workforce operations. Designed for enhanced productivity and high reliability, even for large print runs, this workhorse elevates your work quality with seamless functions while delivering outstanding print performance.

      Work smart with instant support

      Automated upgrades, RICOH Intelligent Support* and RemoteConnect Support mean less reliance on service calls and more rapid solutions provided remotely. IT managers can even use the Remote Panel Operation Tool in-house to address fleet issues.

      *When enabled, internet connection required.

      Professional prints and quick & secure document transfers

      Send invoices, contracts and statements digitally and securely. Simply scan documents to email or fax using data encryption, and require user authentication for an extra layer of security. When it comes to professional hardcopy documents like reports and brochures, choose from a wide range of finishing options including hole punching, folding, sorting and stapling. Access all this functionality from your smartphone or tablet for better time management.


      1. Fast scanning speeds
        Send 220 black & white and 240 colour scans per minute effortlessly.
      2. Versatile paper choices
        Print on paper stock from weights as thin as 52g/m2 or as thick as 300g/m2.
      3. No waiting around on prints
        First print ready in under 5 seconds.
      4. Digitise your hardcopies in editable file formats
        Simply scan to convert cumbersome paper documents into ever ready Excel, Word or PDF documents.

      Download PDF brochure

      Specifications

      Functions
      Copy, print, scan, optional fax
      HDD
      320 GB
      Memory - standard
      2 GB
      Operation panel
      10.1-inch Smart Operation Panel (G2.5)
      Physical dimensions (WxDxH)—mainframe
      690 x 883 x 1,161 mm
      Weight—mainframe
      200 kg
      Standard input capacity (sheets)
      4,300
      Maximum input capacity (sheets)
      8,700
      Maximum output capacity (sheets)
      3,500
      Paper input configuration - standard
      1,550-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit
      Supported media

      Plain paper1, recycled paper, colour paper 1–2, special paper, letterhead, bond paper, tracing paper, label, plain paper 1–2, middle thick, thick paper 1–4

      1—Not displayed as paper type

      Maximum paper size
      A3
      Media weight (g/m2)
      52.3–300
      Interfaces - standard
      Mainframe
      10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
      USB 2.0 Host Type A—2 ports
      USB 2.0 Device Type B—1 port

      Smart Operation Panel
      IEEE 802.11 b/g/n (Wireless LAN)1
      Bluetooth 4.22
      SD Card Slot—SDHC memory card
      USB Host Type A—USB Flash memory
      USB Host Type A—1 port for USB keyboard (optional)2
      USB Host Type mini B—for NFC card reader (optional)2
      NFC Tag2

      1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
      2—Cannot be used for printing
      Interfaces - optional

      IEEE 1284
      IEEE 802.11 a/b/g/n (Wireless LAN)
      Device Server Option Type M37 (additional NIC port)
      Copy Connector Type M25

      Network protocols - standard
      TCP/IP (IPv4, IPv6)
      Copy speed
      70 cpm
      First copy time
      3.2 seconds
      Copy resolution
      600 x 600 dpi—scanning
      1,200 x 1,200 dpi—printing
      Zoom range
      25%–400% in 1% steps
      Enlargement ratios
      400%, 200%, 141%, 122%, 115%
      Reduction ratios
      93%, 82%, 75%, 71%, 65%, 50%, 25%
      Duplex copy
      Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
      Book copy
      Booklet, magazine, layout, and booklet
      ID card copy
      Supported
      Print speed black and white
      70 ppm
      First print time
      4.7 seconds or less
      Print resolution
      300 x 300 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
      Page description languages (PDLs)

      Standard
      PCL 5e, PCL 6, PostScript3 emulation, PDF Direct emulation

      Optional
      Adobe PostScript 3, Adobe PDF Direct, XPS, IPDS

      Printer drivers

      PCL 6, PostScript3 emulation

      Duplex printing
      Standard
      Mobile printing
      RICOH Smart Device Connector
      Print from USB/SD
      Supported
      Scan speed
      Via SPDF
      120 ipm—simplex
      240 ipm—duplex
      Scan methods
      Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)
      Colour scanning
      Standard
      Scan resolution
      100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
      Note: Maximum scan size for 1,200 dpi is A5.
      Scan to file types
      Single- and multi-page TIFF
      Single-page JPEG
      Single- and multi-page PDF, PDF/A
      Single- and multi-page High-Compression PDF
      Scan to email

      Protocols
      SMTP gateway, TCP/IP

      Authentication
      SMTP authentication, POP before SMTP authentication

      Scan resolution
      100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

      Scan to email file types
      Single-page
      TIFF, JPEG, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

      Multi-page
      TIFF, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

      Note: Optional OCR unit is required to support scanning to a searchable PDF.

      Scan to folder

      Protocols
      SMB, FTP, WSD (Web Services on Devices for Scanning)

      Security
      Client folder logon, transmission encryption of logon name and password

      Resolution
      100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

      Search for client folders
      SMB—browsing directly to the designated folder
      FTP—by folder name

      Scan to folders file types
      Single-page
      TIFF, JPEG, PDF, PDF/A, High-Compression PDF

      Multi-page
      TIFF, PDF, PDF/A, High-Compression PDF

      TWAIN scanning
      Scan mode
      Standard, Photo, OCR, Filing

      Scan resolution
      100–1,200 dpi
      Note: Maximum scan size for 1,200 dpi is A5.
      Fax types
      G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
      Fax circuit
      PSTN, PBX
      Fax compatibilty
      ITU-T (CCITT), G3—maximum 3 lines
      Fax modem speed
      2,400 bps–33.6 Kbps—G3, standard with automatic shift down
      Fax compression methods
      MH, MR, MMR, JBIG
      Fax resolution

      Standard Mode
      200 x 100 dpi—8 x 3.85 lines/mm

      Detail Mode
      200 x 200 dpi—8 x 7.7 lines/mm

      Super Fine Mode
      400 x 400 dpi—8 x 15.4 lines/mm
      400 x 400 dpi—16 x 15.4 lines/mm

      Note: Super fine mode is supported with the optional SAF memory.

      G3 fax transmission speed
      2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
      3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
      Fax SAF memory capacity
      Standard—4 MB, approximately 320 pages
      With optional SAF memory—60 MB, approximately 4,800 pages
      Fax memory backup
      1 hour
      Quick dials
      2,000 numbers
      Data Overwrite Security System (DOSS) - Standard
      Yes
      Data Overwrite Security System (DOSS) - Optional
      Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
      Encryption
      PDF, Secure print encryption
      Authentication password encryption
      Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
      Authentication
      802.1x wired authentication
      IEEE 802.11i security (WEP, WPA)
      IPv6
      Quota setting/Account limit
      User authentication—Windows and LDAP via Kerberos, basic, user code
      User code authentication
      Wi-Fi Protected Setup (WPS) support
      Windows
      Windows 7
      Windows Server 2008
      Windows Server 2008 R2
      Windows 8.1
      Windows Server 2012
      Windows Server 2012 R2
      Windows 10
      Windows Server 2016
      Windows Server 2019
      Macintosh
      OS X Native v10.12 or later—PostScript 3 only
      Unix
      Sun Solaris—10
      HP-UX—11.x, 11iv2, 11iv3
      Red Hat Linux—Enterprise v4, v5, v6
      SCO OpenServer—5.0.7, 6.0
      IBM AIX—6.1, 7.1, 7.2
      SAP
      Environment—R/3, S/4
      Platform—SAP R/3 (Release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
      Page Description Language (PDL)—PCL
      Character set—Latin-1, Latin-2, Unicode
      Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS Postnet, UPC/EAN
      OCR fonts—OCR A, OCR B
      Other supported features—Input/Output Bin, Duplex, Stapling, Punching, Resolution, Collation, EconoMode / TonerSaving, Smoothing, Page Protect, Auto Tray Change/Optional Tray Select, User Authentication
      Standard
      @Remote Embedded
      Web Image Monitor
      Optional
      @Remote
      Streamline NX v3
      Global Scan NX
      Card Authentication Package
      Enhanced Locked Print NX
      Device Manager NX Lite
      Device Manager NX Accounting
      Printer Driver Packager NX
      @Remote Connector NX
      Mobile apps
      RICOH Smart Device Connector
      Power source
      220–240 V, 8.5 A, 50/60 Hz
      Power consumption
      1,900 W or less—maximum power
      1,140 W or less—operating power
      400 W or less—Ready Mode
      163 W or less—Low Power Mode
      0.6 W or less—Energy Saver Mode (Sleep Mode)
      Typical Electricity Consumption (TEC)
      1.326 kWh
      Warm-up time
      20 seconds or less
      Power saving mode
      1 minute shift time—Energy Saver Mode (Sleep Mode)
      1 minute shift time—Low Power Mode
      Recovery time
      20 seconds—Energy Save Mode (Sleep Mode)
      10 seconds—Low Power Mode
      Other environmental features
      Eco-friendly indicator, Energy Saver Timer
