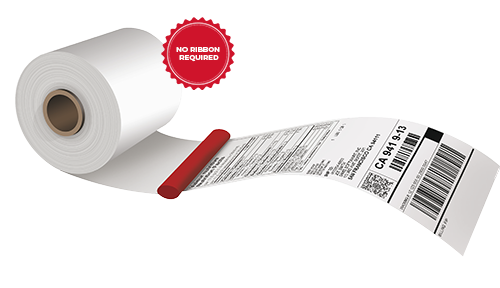

130PML-2L W2-NH Laminated Direct Thermal Paper

Ricoh Direct Thermal Paper (No ribbon required)	1 คุณลักษณะของกระดาษ
	Item		Unit	Specification	Test Method
	Basis weight	Total	g/m²	133 ± 12	ISO 536
		Thermal Face		67 ± 7
		Release Paper		50 ± 2
	Thickness	Total	μm	124 ± 14	ISO 534
		Thermal Paper		67 ± 9
		Liner (glassine)		44 ± 2
	Whiteness	Thermal Paper	%	70.0 min	ISO 2470
	Smoothness	Thermal Paper	s	500 min.	Oken type instrument
	2 ความทนทาน
	Item		Unit	Specification	Test Method
	Humidity Resistance	Image		0.70 min	40°C,90%,24h
	Humidity Resistance	Background		0.20 max	40°C,90%,24h
	Light Resistance	Image	-	0.70 min	5000lx,100h 25°C,50%
	Light Resistance	Background	-	0.20 max	5000lx,100h 25°C,50%
	Vegetable Oil Resistance	Image	-	0.70 min	20°C,Dry,15h
	Vegetable Oil Resistance	Background	-	0.20 max	20°C,Dry,15h
	Water Resistance	Image	-	0.40 min	20°C,15h
	Water Resistance	Background	-	0.20 max	20°C,15h
	Plasticizer Resistance Face	Image	-	0.70 min	1 sheet, 20°C, 15h, 0.5 kg
	Plasticizer Resistance Face	Background	-	0.20 max	1 sheet, 20°C, 15h, 0.5 kg
	Plasticizer Resistance Back	Image	-	0.40 min	3 sheets, 50°C, 48h, 5 kg
	Plasticizer Resistance Back	Background	-	0.20 max	3 sheets, 50°C, 48h, 5 kg
	3 คุณสมบัติของกาว
	Item		Unit	Specification	Test Method
	Liner Release Value		mN/40mm	200 max	300 mm/min, 22°C,55%
	Peel force		N/25mm	8 min	Vs SUS, 300mm/min, 22°C,55%
	Minimum Application Temperature		°C	10
	Product Functional Service Temperature		°C	Above -10

Restriction of Hazardous Substances	Material Safety Data Sheets	Forest Responsibility
BPA Free	Chemicals Standards

Item	Unit	Specification	Test Method
Image color	-	Black	Visual inspection
Static maximum density	-	1.00 min	Heat gradient tester 200~160^oC
Dynamic image sensitivity	Mj/dot	0.43 max	Test method for chromophore concentration of dynamic
