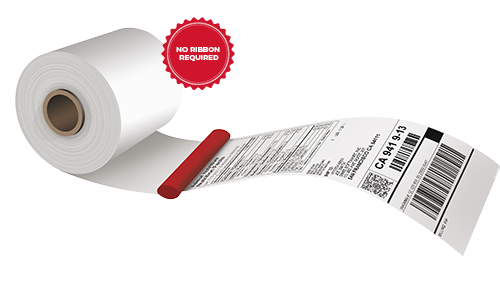

130PSL-5 Facestock Direct Thermal Paper

Ricoh Direct Thermal Paper (No ribbon required)	1 คุณลักษณะของกระดาษ
	Item		Unit	Specification	Test Method
	Basis weight		g/m²	62 ± 7	ISO 536
	Thickness		μm	62 ± 9	ISO 534
	Tear strength	MD	N	0.18 min	ISO 1974
	Tear strength	CD	N	0.20 min	ISO 1974
	Tensile strength	MD	kN/M	2.3 min	ISO 1924
	Tensile strength	CD	kN/M	1.2 min	ISO 1924
	Smoothness (face)		s	500 min	Oken type instrument
	Whiteness		%	70 min	ISO 2470
	2 ความทนทาน
	Item		Unit	Specification	Test Method
	Water Resistance	Image	-	0.40 min	20°C,15h
	Water Resistance	Background	-	0.20 max	20°C,15h
	Heat Resistance	Image	-	0.70 min	90°C,Dry,1h
	Heat Resistance	Background	-	0.20 max	90°C,Dry,1h
	Vegetable Oil Resistance	Image	-	0.70 min	20°C,Dry,15h
	Vegetable Oil Resistance	Background	-	0.20 max	20°C,Dry,15h
	Humidity Resistance	Image	-	0.70 min	40°C,90%,24h
	Humidity Resistance	Background	-	0.70 max	40°C,90%,24h
	Light Resistance	Image	-	0.20 min	5klx,100h,25°C, 50%
	Light Resistance	Background	-	0.70 max	5klx,100h,25°C, 50%
	Plasticizer Resistance Face	Image	-	0.70 min	20°C,15h, 0.5 kg
	Plasticizer Resistance Face	Background	-	0.20 max	20°C,15h, 0.5 kg
