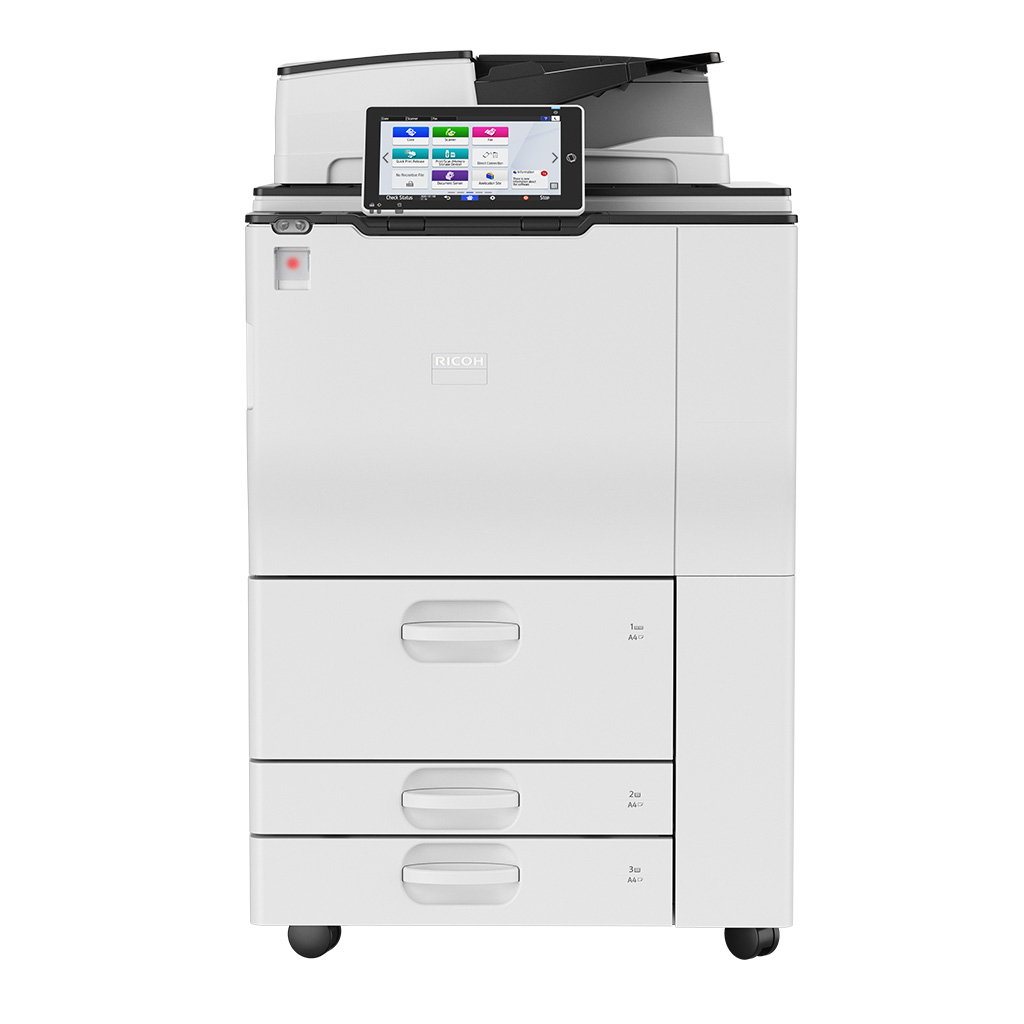

    IM 7000 A3 black and white multifunction printer

    • Copy, print, scan, optional fax
    • Prints up to 70 ppm
    • 8,700-sheet max input
    • RICOH Always Current Technology

    Work smart with instant support

    Automated upgrades, RICOH Intelligent Support* and RemoteConnect Support mean less reliance on service calls and more rapid solutions provided remotely. IT managers can even use the Remote Panel Operation Tool in-house to address fleet issues.

    *When enabled, internet connection required.

    Professional prints and quick & secure document transfers

    Send invoices, contracts and statements digitally and securely. Simply scan documents to email or fax using data encryption, and require user authentication for an extra layer of security. When it comes to professional hardcopy documents like reports and brochures, choose from a wide range of finishing options including hole punching, folding, sorting and stapling. Access all this functionality from your smartphone or tablet for better time management.


    1. Fast scanning speeds
      Send 220 black & white and 240 colour scans per minute effortlessly.
    2. Versatile paper choices
      Print on paper stock from weights as thin as 52g/m2 or as thick as 300g/m2.
    3. No waiting around on prints
      First print ready in under 5 seconds.
    4. Digitise your hardcopies in editable file formats
      Simply scan to convert cumbersome paper documents into ever ready Excel, Word or PDF documents.

    Download PDF brochure


    Specifications

    功能
    Copy, print, scan, optional fax
    存儲
    320 GB
    記憶體 - 標配
    4 GB—2 GB mainframe + 2 GB Smart Operation Panel
    操作面板
    10.1-inch Smart Operation Panel (G2.5)
    體積(WxDxH)- 設備主體
    690 x 883 x 1,161 mm
    重量 - 設備主體
    200 kg
    標準輸入容量(頁)
    4,300
    最大輸入容量(頁)
    8,700
    最大輸出容量(頁)
    3,500
    紙張輸入配置 - 標準
    1,550-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit
    支援材質媒介

    Plain paper1, recycled paper, colour paper 1–2, special paper, letterhead, bond paper, tracing paper, label, plain paper 1–2, middle thick, thick paper 1–4

    1—Not displayed as paper type

    最大紙張尺寸
    A3
    紙張重量(g/m2)
    52.3–300
    連接介面 - 標準
    Mainframe
    10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
    USB 2.0 Host Type A—2 ports
    USB 2.0 Device Type B—1 port

    Smart Operation Panel
    IEEE 802.11 b/g/n (Wireless LAN)1
    Bluetooth 4.22
    SD Card Slot—SDHC memory card
    USB Host Type A—USB Flash memory
    USB Host Type A—1 port for USB keyboard (optional)2
    USB Host Type mini B—for NFC card reader (optional)2
    NFC Tag2

    1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
    2—Cannot be used for printing
    連接介面 - 選配

    IEEE 1284
    IEEE 802.11 a/b/g/n (Wireless LAN)
    Device Server Option Type M37 (additional NIC port)
    Copy Connector Type M25

    網絡協議 - 標準
    TCP/IP (IPv4, IPv6)
    影印速度
    70 cpm
    首張輸出時間
    3.2 seconds
    影印解析度
    600 x 600 dpi—scanning
    1,200 x 1,200 dpi—printing
    變焦範圍
    25%–400% in 1% steps
    放大比例
    400%, 200%, 141%, 122%, 115%
    縮小比例
    93%, 82%, 75%, 71%, 65%, 50%, 25%
    雙面影印
    Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
    書本影印
    Booklet, magazine, layout, and booklet
    證件影印
    Supported
    黑白列印速度
    70 ppm
    首張輸出速度
    4.7 seconds or less
    列印解析度
    300 x 300 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
    頁面描述語言(PDL)

    Standard
    PCL 5e, PCL 6, PostScript3 emulation, PDF Direct emulation

    Optional
    Adobe PostScript 3, Adobe PDF Direct, XPS, IPDS

    印表機驅動程式

    PCL 6, PostScript3 emulation

    雙面列印
    Standard
    行動式列印
    RICOH Smart Device Connector
    從USB / SD列印
    Supported
    掃描速度
    Via SPDF
    120 ipm—simplex
    240 ipm—duplex
    掃描方式
    Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)
    彩色掃描
    Standard
    掃描解析度
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
    Note: Maximum scan size for 1,200 dpi is A5.
    掃描到文件類型
    Single- and multi-page TIFF
    Single-page JPEG
    Single- and multi-page PDF, PDF/A
    Single- and multi-page High-Compression PDF
    掃描到電子郵件

    Protocols
    SMTP gateway, TCP/IP

    Authentication
    SMTP authentication, POP before SMTP authentication

    Scan resolution
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

    Scan to email file types
    Single-page
    TIFF, JPEG, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

    Multi-page
    TIFF, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

    Note: Optional OCR unit is required to support scanning to a searchable PDF.

    掃描到文件夾

    Protocols
    SMB, FTP, WSD (Web Services on Devices for Scanning)

    Security
    Client folder logon, transmission encryption of logon name and password

    Resolution
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

    Search for client folders
    SMB—browsing directly to the designated folder
    FTP—by folder name

    Scan to folders file types
    Single-page
    TIFF, JPEG, PDF, PDF/A, High-Compression PDF

    Multi-page
    TIFF, PDF, PDF/A, High-Compression PDF

    TWAIN掃描
    Scan mode
    Standard, Photo, OCR, Filing

    Scan resolution
    100–1,200 dpi
    Note: Maximum scan size for 1,200 dpi is A5.
    傳真類型
    G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
    傳真電路
    PSTN, PBX
    傳真兼容性
    ITU-T (CCITT), G3—maximum 3 lines
    傳真數據機速度
    2,400 bps–33.6 Kbps—G3, standard with automatic shift down
    傳真壓縮方式
    MH, MR, MMR, JBIG
    傳真解析度

    Standard Mode
    200 x 100 dpi—8 x 3.85 lines/mm

    Detail Mode
    200 x 200 dpi—8 x 7.7 lines/mm

    Super Fine Mode
    400 x 400 dpi—8 x 15.4 lines/mm
    400 x 400 dpi—16 x 15.4 lines/mm

    Note: Super fine mode is supported with the optional SAF memory.

    G3傳真傳輸速度
    2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
    3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
    傳真SAF儲存容量
    Standard—4 MB, approximately 320 pages
    With optional SAF memory—60 MB, approximately 4,800 pages
    傳真儲存備份
    1 hour
    快速撥號
    2,000 numbers
    資料覆寫安全單元 (DOSS )- 標配
    Yes
    資料覆寫安全單元 (DOSS )- 選配
    Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
    加密
    PDF, Secure print encryption
    Authentication password encryption
    Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
    認證方式
    802.1x wired authentication
    IEEE 802.11i security (WEP, WPA)
    IPv6
    Quota setting/Account limit
    User authentication—Windows and LDAP via Kerberos, basic, user code
    User code authentication
    Wi-Fi Protected Setup (WPS) support
    Windows
    Windows 7
    Windows Server 2008
    Windows Server 2008 R2
    Windows 8.1
    Windows Server 2012
    Windows Server 2012 R2
    Windows 10
    Windows Server 2016
    Windows Server 2019
    Macintosh
    OS X Native v10.12 or later—PostScript 3 only
    Unix
    Sun Solaris—10
    HP-UX—11.x, 11iv2, 11iv3
    Red Hat Linux—Enterprise v4, v5, v6
    SCO OpenServer—5.0.7, 6.0
    IBM AIX—6.1, 7.1, 7.2
    SAP
    Environment—R/3, S/4
    Platform—SAP R/3 (Release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
    Page Description Language (PDL)—PCL
    Character set—Latin-1, Latin-2, Unicode
    Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS Postnet, UPC/EAN
    OCR fonts—OCR A, OCR B
    Other supported features—Input/Output Bin, Duplex, Stapling, Punching, Resolution, Collation, EconoMode / TonerSaving, Smoothing, Page Protect, Auto Tray Change/Optional Tray Select, User Authentication
    標配
    @Remote Embedded
    Web Image Monitor
    選配
    @Remote
    Streamline NX v3
    Global Scan NX
    Card Authentication Package
    Enhanced Locked Print NX
    Device Manager NX Lite
    Device Manager NX Accounting
    Printer Driver Packager NX
    @Remote Connector NX
    行動APPs
    RICOH Smart Device Connector
    電源
    220–240 V, 8.5 A, 50/60 Hz
    耗電量
    1,900 W or less—maximum power
    1,140 W or less—operating power
    400 W or less—Ready Mode
    163 W or less—Low Power Mode
    0.6 W or less—Energy Saver Mode (Sleep Mode)
    一般用電量 (TEC)
    1.326 kWh
    暖機時間
    20 seconds or less
    節能模式
    1 minute shift time—Energy Saver Mode (Sleep Mode)
    1 minute shift time—Low Power Mode
    恢復時間
    20 seconds—Energy Save Mode (Sleep Mode)
    10 seconds—Low Power Mode
    其他環境功能
    Eco-friendly indicator, Energy Saver Timer
