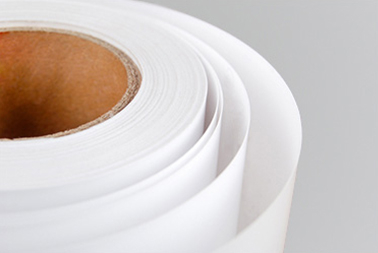

DT Paper - 130PSS-1 Giấy in nhiệt trực tiếp dạng siêu mỏng

  • Độ nhạy cảm về nhiệt cao
  • Được tráng phủ cả hai mặt bảo vệ hình ảnh sau in và nguyên liệu in được tốt hơn



Ricoh Direct thermal paper no ribbon requiredRicoh Direct Thermal Paper (No ribbon required)
 1    Paper Quality Characteristics
Item UnitSpecificationTest Method
Basis weight
g/m267 ± 7
ISO 536
Thicknessμm71 ± 9
 ISO 534
Tear strengthMDN0.20 minISO 1974
CDN0.25 min
Tensile strengthMDN/15mm35 minISO 1924
CDN/15mm20 min
Whiteness %85 minJIS P-8149
Smoothness s500 min Oken type instrument
2    Preservation
ItemUnitSpecificationTest Method
  Oil ResistanceImage 0.70 min20°C,Dry,15h
Background 0.20 max
Heat ResistanceImage -0.70 min90°C,Dry,1h
Background-0.20 max
Water ResistanceImage-0.40 min20°C,15h
Background-0.20 max
Moisture ResistanceImage-0.70 min
40°C,90% RH,24h
Background-0.20 max
Light ResistanceImage-0.70 minFluorescent Lamp 5klx,100h
Background-0.20 max
 Plasticizer Resistance FaceImage -0.70 min 20°C,Dry,15h, 1 Sheet
Background -0.20 max

Restriction of Hazardous Substances



Material Safety Data Sheets



Forest Responsibility



BPA Free



Chemicals Standards


Applications suitable for:


Image Properties

Item UnitSpecificationTest Method
Image color - BlackVisual inspection
Static image sensitivity -0.95 minHeat gradient tester 200~160oC
Dynamic image sensitivity Mj/dot0.40 maxRicoh standard simulator
