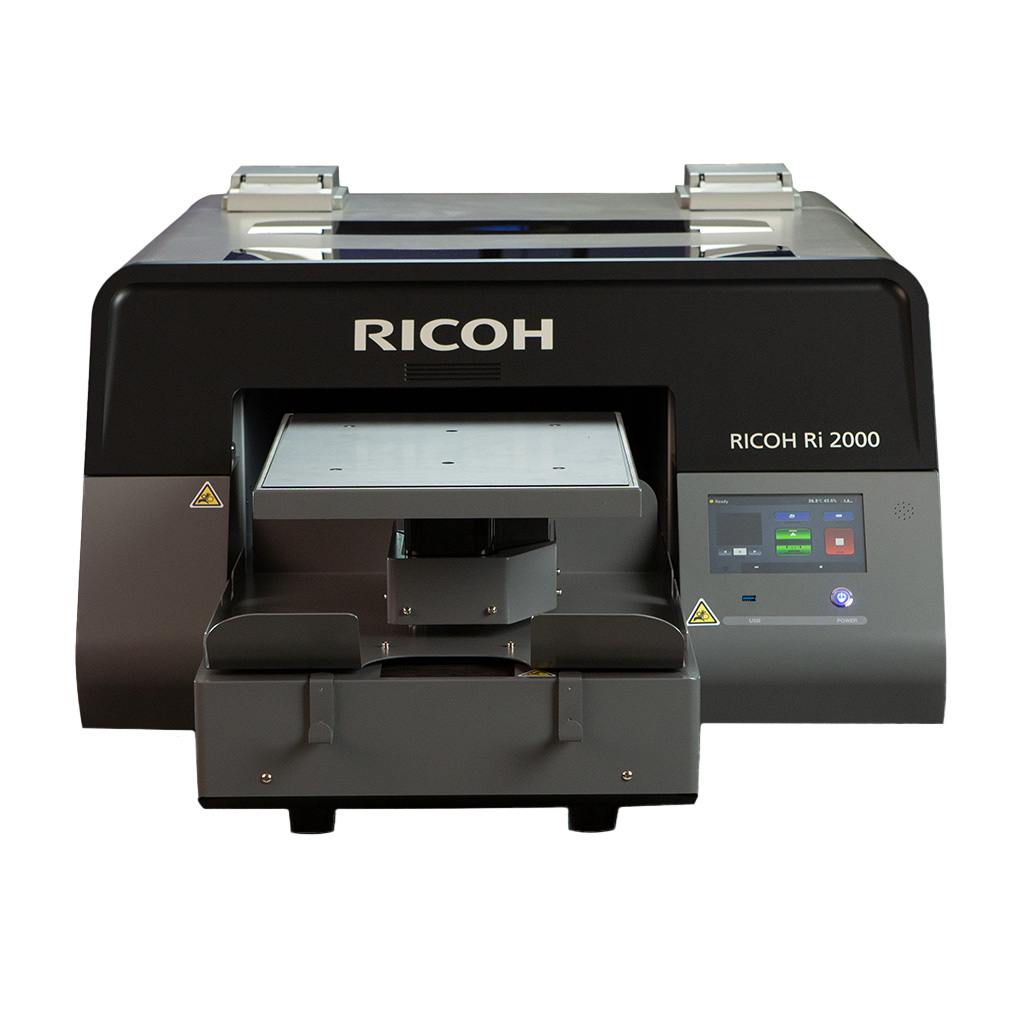

RICOH Ri 2000 Direct to Garment printer

25 seconds Maximum Speed Mode printing
ColorGATE Production Server sofware
Supports white ink
Optional platens

Boost customer numbers with more printing choices

With Ri 2000, it has never been easier to print a one-of-a-kind T-shirt or bag for your customers to take away immediately. Whether you have just started in the printing business or are a seasoned print provider, you can instantly expand your scope of services by printing on a wide variety of long-lasting products.

High-speed, user-friendly printing

The Ri 2000 is so easy to use and offers exceptionally fast print speeds for greater productivity. It’s two-carriage operation ensures quality prints on garments without limitations on half tones, and it’s so easy to maintain thanks to its automatic print head nozzle cleaning.

Print continuously on a single pass
The dual carriage enables continuous print on a white layer in a single pass.
Achieve colour consistency every time
Ri 2000 automates production workflows and creates white layers for printing on dark garments with CG Rip.
Automate the monitoring of supplies and conditions
Ri 2000 continuously monitors ink supply, temperature and humidity levels so you don’t have to.
Eliminate manual cleaning of print head nozzles
The innovative automated head cleaning jig saves time and effort by eliminating the need to manually maintain print head nozzles.

Download PDF brochure

Specifications

Các tính năng: Garment print
Màu sắc: Yes
Bộ xử lý: Intel Core i5-7500 3.4 GHz
Bộ nhớ - chuẩn: 8 GB
Màn hình điều khiển: 7" touchscreen display
Cấu hình thiết bị: Desktop

Kích thước vật lý (Rộng x Sâu x Cao) - phần máy chính: 864 x 1,660 x 520 mm
Kích thước vật lý (Rộng x Sâu x Cao) - các phần khác: 266 x 330 x 33 mm —RICOH Small Platen Type G1
320 x 457 x 33 mm—RICOH Medium Platen Type G1
406 x 498 x 33 mm—RICOH Large Platen Type G1
375 x 355 x 30 mm—RICOH Shoes Platen Type G1
204 x 450 x 51mm—RICOH Sleeve Platen Type G1
240 x 357 x 91mm—RICOH Hat Platen Type G1
Trọng lượng - thân máy chính: 140 kg
Trọng lượng - các phần khác: 4.1 kg— RICOH Large Platen Type G1
3.2 kg— RICOH Medium Platen Type G1
2.3 kg— RICOH Small Platen Type G1
2.0 kg—RICOH Shoes Platen Type G1
2.5 kg—RICOH Sleeve Platen Type G1
2.9 kg—RICOH Hat Platen Type G1
Yêu cầu không gian tối thiểu: 600 mm—front
600 mm—left
600 mm—right (ink slot side)
50 mm—rear

Lượng in trung bình hàng tháng: 500 sheets
Công suất tối đa hàng tháng: 4,000 sheets
Tuổi thọ máy: 40,000 sheets or 5 years whichever comes first
Công suất ra bản in giữa các kỳ bảo trì (MCBC): 2,239 sheets
Công suất ra bản in giữa các kỳ báo lỗi (MCBF): 3,571 sheets
Tỷ lệ màu: Colour 100%, White 50%
Bảo trì: Maximum 60 minutes maintenance time/1 person

Năng suất hộp mực

Ink cartridge yield—standard
1,792 sheets per CMYK set (200 ml x 4 colour cartridges)
197 sheets per W1,W2 set (200 ml x 2 white cartridges)

Ink cartridge yield—high yield
4,465 sheets per CMYK set (500 ml x 4 colour cartridges)
491 sheets per W1,W2 set (500 ml x 2 white cartridges)

Ink cartridge capacity
200 ml—standard
500 ml—high yield

Cleaning cartridge capacity
200 ml

Waste ink bottle
1,200 sheets

Xử lý vải

Substrates
Cotton, blend ratio 50–100%

Applications
T-shirt, tote bag, sweatshirt, polo shirt, hat, shoes, towel, handkerchief, bib

Garment thickness
30 mm max—without frame
4 mm max—with frame

Garment thickness sensor
Available

Garment types
Standard
Spectra USA, Spectra T-shirt 3100–148 g/m²

RecommendedToms/heavy-weight T-shirt 00085-CVT—190 g/m²
Toms/tote bag—404 g/m²
Toms/tote bag—270 g/m²
Toms/tote bag—135 g/m²

Platen type
Dress

Platen sizes
406 x 498 mm/16” x 19.6”—large
320 x 457.2 mm/12.6” x 18”—medium
266.7 x 330.2 mm/10.5” x 13”—small

Table height adjustment
Automatic—0–30 mm adjustment
Unregulated adjustment pitch
1.5 kg maximum load

Giao diện - chuẩn: USB Flash memory
10/100 Base-T Ethernet (AutoMDI/MDI-X)

Tốc độ in màu

4-Colour (4C)
78 seconds—High Image Quality Mode
48 seconds—Standard Mode
33 seconds—High Speed Mode
25 seconds—Maximum Speed Mode

4C + White
112 seconds—High Image Quality Mode
83 seconds—Standard Mode
69 seconds—High Speed Mode
60 seconds—Maximum Speed Mode

Note: Print speeds based on 10"x 8" at 25º C through the entire process—push start button, table moves forward, ink purged, printing, table moves back.

Công nghệ in

Inkjet

Loại mực

Water-based garment ink

Cấu hình mực

KCMY—front carriage
W—rear carriage

Đầu in

8 Ricoh Piezo ink heads
192 nozzles in 16 lines
2 carriages
5 colours

Độ phân giải in

1,200 x 1,200 dpi / 8-pass—High Image Quality Mode
600 x 600 dpi / 4-pass—Standard Mode
600 x 600 dpi / 2-pass—High Speed Mode
600 x 300 dpi / 1-pass—Maximum Speed Mode
600 x 1,200 dpi / 4-pass—White plane print

Vùng in được tối đa

406 x 498 mm / 16" x 19.6"

Các tính năng in khác

Pre-treatment
PowerBright Pre-treatment Liquid (Dupont P5002)

Post-treatment
Heat press
40 seconds/180^oC—CMYK (K requires 80 seconds)
90 seconds/165^oC—CMYK + W

Windows: Windows 8.1 or later
Ngôn ngữ hỗ trợ: English, French, Italian, German, Spanish, Dutch, Portuguese, Russian

Tiêu chuẩn: Supervisor-I
Ricoh DTG Basic Edition
Tùy chọn: Ricoh DTG Efficiency Edition
Ricoh DTG Colour Professional Edition

Nguồn điện

200–240 V, 50–60 Hz (±3 Hz), 1.0 A

Mức độ tiêu thụ điện

26 W—standby
120 W—maximum, operating

Mức công suất âm thanh

40 dB—standby
69 dB—operating

Các tiêu chuẩn môi trường

Ricoh GPP
RoHS
REACH
Directive 94/62/EC
Directive 2006/66/EC
WEEE

Chuẩn an toàn

IEC62368-1
IEC60950-1
Low Voltage Directive EN62368-1
Machinery Safety Directive EN62368-1
Ricoh Product Safety Standards

Tiêu chuẩn tương thích điện từ (EMC)

EN 55032 Class A
EN 55024
EN 61000-3-2, EN 61000-3-3
EN 62311
AS/NZS CISPR 32

Điều kiện hoạt động

Temperature
15–32º C

Humidity
45–80% RH

Power on time
24 hours a day
