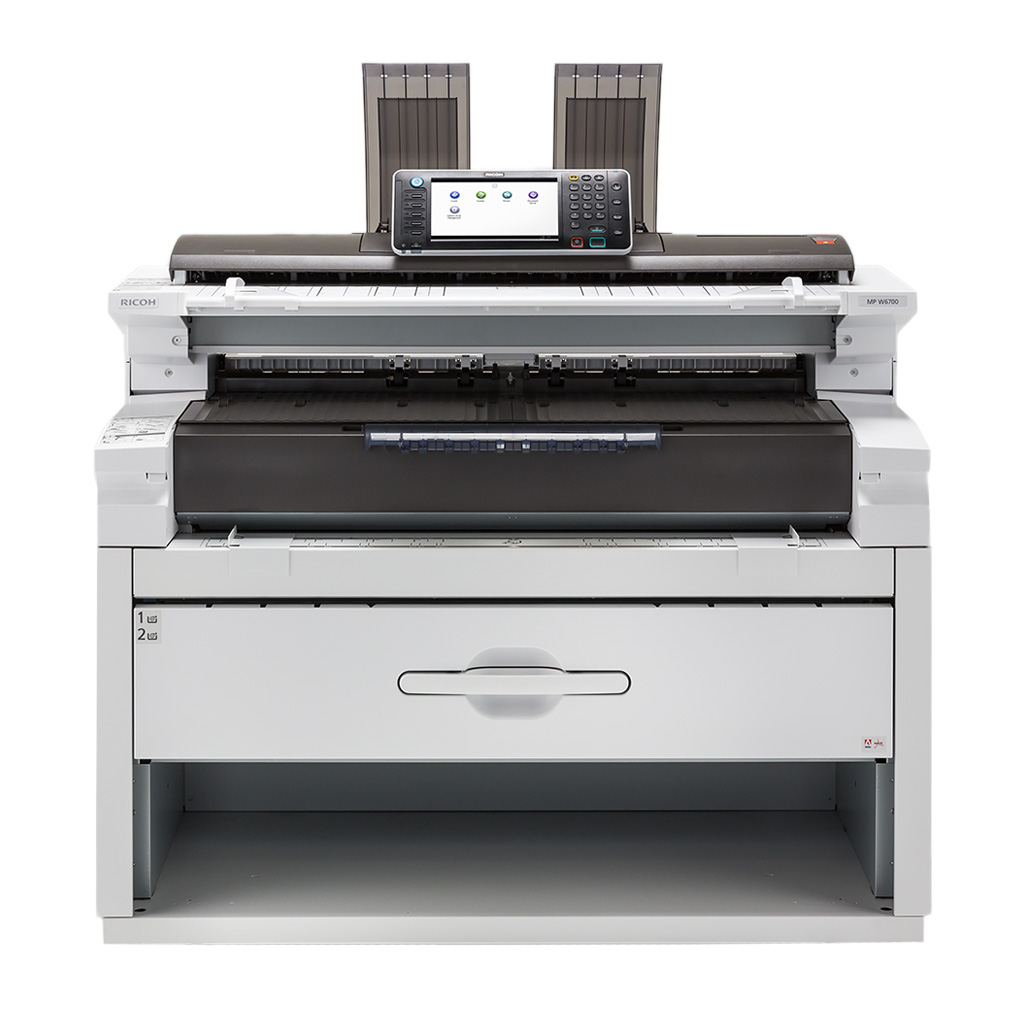

MP W6700SP Black & White Multifunction Wide Format Printer.

Print, copy, and scan
6.7 ppm—A1
600 dpi
15 m max print length

Large format printing, on a small office budget

Improve collaboration with a wide format black and white printer than can also copy,scan and send files. The MP W6700SP is designed for contractors,architects and engineers who need a cost-effective solution.

The quiet office achiever

Keep your office productive, without interruption. Download the Ricoh PrintCopy Tool to print and edit any file quickly to make changes and get approvals more quickly. Access shortcuts to your favourite settings with the customisable touchscreen panel. When last minute changes are made, quickly print updated documents and then scan to email, folder or USB/SD card. Noise levels are kept low to encourage focus, with a compact design to minimise space.

Safe and sound data

Be confident that the information you use and share is kept under wraps. A number of features are here to help with data security which is critical for your organisation’s success. Windows Authentication limits access to authorised users. PDF Encryption protects files and the optional Data Overwrite Security System keeps information in safe hands.

Energy saving
Quick Start-Up and Sleep Mode reduce energy consumption
Impressive colour scanning
Full colour scan resolution of up to 1,200 dpi
Remote management
View, monitor and change system settings from any web browser with Web Image Monitor
Compact size
Space saving design fits easily into small offices

Download PDF brochure

Specifications

Các tính năng: Copy, print, scan
Màu sắc: No
Bộ điều khiển máy in - chuẩn: GWNX
Bộ nhớ: 320 GB—shared with copy, printer, and scanner applications
Máy chủ chứa tài liệu: 3,000 pages—storage
3,000—document
Maximum 1,000 pages per document
Bộ xử lý: 1.06 GHz
Bộ nhớ - chuẩn: 2.5 GB
Màn hình điều khiển: 9-inch colour LCD operation panel

Kích thước vật lý (Rộng x Sâu x Cao) - phần máy chính: 1,250 x 755 x 1,215 mm
Trọng lượng - thân máy chính: 267 kg

Lượng in trung bình hàng tháng: 350–470 metres
Công suất tối đa hàng tháng: 3,000 metres
Tuổi thọ máy: 1,683,000 copies or 5 years, whichever comes first
Chu kỳ vòng đời máy: 16,840 copies or 10,000 metres
Công suất ra bản in giữa các kỳ bảo trì (MCBC): 7,700 copies or 4,565 metres
Công suất ra bản in giữa các kỳ báo lỗi (MCBF): 14,160 copies or 8,400 metres

Năng suất hộp mực: 1,430 m per 800g toner cartridge

30,000 m (1 kg x 2 bags) developer

Note: 2 bags required for setup.
All yields are measured with the A1/6% Ricoh chart.

Dung lượng giấy đầu vào chuẩn (tờ)

2 paper rolls—2-roll feeder
1 sheet—bypass tray

Dung lượng giấy đầu ra chuẩn (tờ)

Inner
99 sheets plain paper—A1 LEF
10 sheets application paper—A1 LEF 1 sheet film

Rear
10 sheets plain paper—A1 portrait, A0 SEF
1 sheet application paper—A1 portrait, A0 SEF 1 sheet film

Cấu hình giấy đầu vào - chuẩn

1-sheet bypass tray, 2-roll feeder

Cấu hình giấy đầu ra - chuẩn

Original stacker, rear straight through tray

Cấu hình giấy đầu ra - tùy chọn

Original tray, original hanger, multi-stacker

Kích thước giấy tối đa

914 mm x 15,000 mm

Định lượng giấy (g/m2)

52.3–110

Nguồn cấp giấy không giới hạn

Supported—only with roll feeder option

Giao diện - chuẩn: Gigabit Ethernet (10Base-T/100Base-Tx/1000Base-T)
USB 2.0
SD card slot
Giao diện - tùy chọn: IEEE802.11a/g/n (Wireless LAN) with WPA support
IEEE 1284
SD card for NetWare printing
2 x option slots
USB Host interface for third party IC card reader
Giao thức mạng - chuẩn: TCP/IP (IPv4, IPv6)
Giao thức mạng - tùy chọn: IPX/SPX—with NetWare printing option
Hỗ trợ MIB: Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)
SNMP v3 (RFC2574)

Private
Ricoh original MIB

Tốc độ sao chụp

6.7 cpm—A1 LEF

Thời gian sao chụp bản đầu tiên

18 seconds or less—A1 LEF, from roll feeder

Độ phân giải sao chụp

600 dpi

Kích thước bản gốc

914.4 x 15,000 mm

960 mm—maximum original width
15,000 mm—maximum original length

Chiều rộng giấy bản gốc

210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 680, 707, 728, 841, 880, 914.4 mm (marking only for 490, 680 mm)

Note: APS and rotate sort do not work for 440, 490, 620, 625, 680, 707, 880 mm

Bộ nạp bản gốc

Sheet

Đầu ra giấy bản gốc

Rear straight through, original front upper

Xếp chồng bản gốc

Rear straight through
100 sheets—A2 LEF or less
1 sheet—A1 LEF or more

Kích thước sao chụp

Maximum
914 x 15,000 mm—roll feeder
914 x 2,000 mm—bypass tray

Minimum
210 x 210 mm

Độ rộng khổ giấy sao chụp

210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914.4 mm

Khay nạp giấy sao chụp

Original rear straight through, original inner output

Thiết lập vị trí

Centre

Tỷ lệ tái tạo

1:1

Phương pháp cắt giấy

Preset size, synchronised cut, variable cut

Thang xám

256 levels—scanning
2 levels—writing

Dịch chuyển ảnh

Front, rear, left, right—0 to ± 200 x 1 mm

Số trang cho lệnh in đặt trước

A0—100 or more
A1—100 or more
A2—200 or more
A3—400 or more
A4—400 or more

Dừng khẩn cấp

Standard—key

Thông tin rỗng

Roll—5 degrees

Phạm vi thu-phóng

25%–400% in 0.1% steps

Tỷ lệ phóng to

141.4%, 200%, 282.8%, 400%

Tỷ lệ thu nhỏ

25%, 35.4%, 50%, 70.7%

Điều chỉnh mật độ ảnh

Lighter to darker, 9 levels

Điều chỉnh mật độ ảnh

9 steps—automatic, manual

Chế độ sao chụp

Text mode, Text/Photo mode, Photo mode, Drawing mode, Generation Text mode, Generation Photo mode, Pasted Original mode, Background Line mode, Highlighter mode

Chọn giấy

Automatic Paper Selection (APS)
1st roll tray—available when roll feeder option is installed
2nd roll tray—only available when 2-roll feeder option is installed
A2 cutsheet tray (optional)
Bypass tray

Tự động chọn giấy (APS)

Supported

Ngắt sao chụp

Supported

Phân loại điện tử

Standard—not available for custom sizes 880, 800, 707, 680, 660, 625, 620, 490, 440 mm

Điều chỉnh căn lề/xóa lề

Margin adjustment

0–200 mm in 1 mm steps

Erase
Edge—3–50 mm
Inside—5 areas (A0 or less)
Outside—1 area (A0 or less)

Điều chỉnh hình ảnh

Image overlay, format overlay, negative or positive, mirroring, double copy, repeat copy (1-99, 10-key input)

Tem

Preset
8 stamps; upper right, upper centre, upper left, centre right, centre, centre left, lower right, lower centre, lower left

User presets
Maximum 40 stamps; upper right, upper centre, upper left, centre right, centre, centre left, lower right, lower centre, lower left

Date stamp
Upper right, upper centre, upper left, lower right, lower centre, lower left

Page stamp
Upper right, upper centre, upper left, lower right, lower centre, lower left

Các tính năng sao chụp khác

Non-standard size input, original insertion direction, designated width scan, half speed scan, sample copy (1st set out of multiple sets is printed) , partial copy (210–30,000 mm length can be defined as partial), combine (up to A2 size), clear (clear/stop key), copy auto clear, auto off, Energy Saver key, auto Energy Saver Mode, reset key, auto start, user code, key operator code, display of paper type, auto reduce and enlargement, user auto reduce and enlargement, preset reduce and enlargement, zoom

Tốc độ in màu

Tốc độ in trắng đen

6.7 ppm

Quá trình in

Electro-photographic printing

Sấy

Method
Heat and pressure

Roller materials
Teflon—heat roller
Silicone rubber—pressure roller

Fusing oil
Minimal used

Phát triển mực in

Magnetic brush dual component dry toner system

Độ phân giải in

600 dpi

Ngôn ngữ mô tả trang (PDLs)

PostScript 3, RPCS, HP-GL, HP-GL2 (HP-RTL), TIFF (CALS)

Độ phân giải theo trình điều khiển in

RPCS
600 dpi

PostScript 3
300, 600 dpi

RP-GL/RP-GL2
400, 600 dpi

RTIFF
200, 300, 400, 600 dpi

Bộ font chữ

136 European fonts—PostScript 3

Định dạng tệp được hỗ trợ

PrintTool software
HP-GL, HP-GL2, HP-RTL, TIFF, WMF, BMP, CALS, PCX, JPEG, PDF (up to v1.7), Calcomp, XLS, DOC/DOCX, PPT

Note: XLS, DOC/DOCX, PPT file formats are supported only when printing status is ready with installed printer driver

PrintCopyTool software—optional
DWG, DXF, DWF

Vùng không in được

Leading edge—5 mm
Trailing edge—5 mm
Each side—5 mm

Các tính năng in khác

Sample print, Locked print, Hold print, Stored print, Stored print (shared), Store and print, Store and print (shared), PDF Direct Print, Counter blade cleaning system, Charge system—Scorotron (corona charge), File format converter

Tốc độ scan

80 mm/second—black and white
26.7 mm/second—colour

Phương pháp scan

CIS

Scan màu

Supported

Chế độ scan

Black and white
Drawing (default), Text, Text/Photo, Text/Drawing, Photo, Greyscale

Colour
Text/Photo, Photo

Độ phân giải scan

600 dpi, TWAIN—1,200 dpi

Optical resolution
Scan to email/folder—150, 200 (default), 300, 400, 600 dpi
TWAIN—150–1,200 dpi

Tự động xác định cỡ giấy

Auto detect, preset paper size, custom size

Kích cỡ bản gốc

914.4 x 15,000 mm—maximum, 210 x 210 mm—minimum

Chỉnh sửa ảnh

Erase border, positive/negative, mirror image

Điều chỉnh mật độ ảnh

Lighter to darker, 9 levels

Scan đến email

Requirement
SMTP (mail server) gateway and TCP/IP

Authentication
SMTP, POP before SMTP authentication

Resolution
150, 200 (default), 300, 400, 600 dpi

Supported file types
Multipage TIFF (default), single page TIFF, single- and multipage PDF, single page JPEG, single- and multipage high compression PDF, PDF/A

Scan đến email - các tính năng khác

Compression method
1 bit—MH, MR, MMR (default). It can be changed in SP mode.
JPEG—Supported (default)
High compression—Not supported

Maximum email addresses
2.000 addresses

Maximum group address
Standard 100 groups (Maximum 500 addresses per group)

Maintain email addresses
Via operation panel, Web Image Monitor

Address search
Mainframe address book—email and folder search available
LDAP—email address search available

Input of destination email address
Via soft key—maximum 100 destinations per job

Maximum addresses per send
500—from HDD
100—Direct input
100—LDAP

Attention
To, cc, bcc

Body message
Manual input—supported
User presets—Not supported
Preset message—This e-mail includes attached file sent from <device name>.

Scan to email size
With restriction—128–102,400 KB, default 2,048 KB
Without restriction—975 MB

Other features
PDF security setting, program user setting—up to 10 programs, divide and send email, resend email

Scan đến thư mục

Protocols
SMB, FTP, NCP

Security
Client folder login (login name and password), encryption of login name and password during transmission

Resolution
150, 200 (default), 300, 400, 600 dpi

Search client folder
SMB—browsing directly to the designated folders
FTP—by client folder name

Supported file types
Multipage TIFF (default), single page TIFF, single- and multipage PDF, single page JPEG, high compression PDF, PDF/A

Scan đến thư mục - các tính năng khác

Register client folder address
Maximum 2,000 folders

Maintain client folder address
Direct input on operation panel, Web Image Monitor

Destination client folder address input via operation panel
SMB—network path->client folder->password
FTP server—network path->user account->password

Maximum folders per send
50

Group address
Maximum 100 destinations (to folder 50, to email 100)

Scan file size
Up to 2,000 MB

Scan to folders size when combined with scan to email
128–45,389 KB, default—2,048 KB (with restriction)

Other features
PDF security setting, program user setting, resend, destination combination

Scan dạng TWAIN - các tính năng khác

Standard size
A4–A0, B4–B1

Image adjustment
XY resolution, brightness, contrast, threshold/gamma adjustment, halftone pattern, rotation, mirror, tone reversal

Memory
Minimum required memory for operating system + 8 MB

CPU
Pentium 150 MHz or more, or minimum required CPU for operating system

HDD
More than 100 MB of disk space is required

Network protocols
TCP/IP, UDP/IP, ICMP/IP

Scan dạng TWAIN

Resolution
Black and white
150–1,200 dpi in 1 dpi steps

Colour
150–600 dpi

Scan mode
Standard, photo, OCR, filing

Các tính năng scan khác

Preview before transmission, automatic file naming and number setting, simultaneous transmission, Encrypted PDF transmission, Edit (erase border, positive/negative, mirror image), network TWAIN as a bundled scanner driver

DataOverwriteSecurity System (DOSS) - Tùy chọn: Type H—supports the requirements for Common Criteria certification, conforming to IEEE 2600.1
Mã hoá: Authentication password encryption
Encrypted communication over Secure Sockets Layer (SSL)
HDD data encryption—optional HDD encryption unit is required
Locked print data encryption
Address book encryption
Encryption of data sent via Scan to email (S/MIME)
PDF encryption (password and transmission)
Xác thực: User authentication—Windows (via Kerberos), LDAP, basic, user code
Administrator authentication
802.1x wired authentication
Các tính năng bảo mật khác: Secure Internet Protocol communication (IPsec)
SNMPv3 support
Restrict use of destination for ‘scan to’ functions
Permit adding destinations for ‘scan to’ destinations

Windows: PostScript 3
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows Server 2003
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Macintosh: Mac OS 10.7 or later—PostScript 3
Ngôn ngữ hỗ trợ: English, Brazilian Portuguese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish

Tiêu chuẩn: @Remote Embedded
Web Image Monitor
Device SDK
Tùy chọn: @Remote Office
Device Manager NX
PrintCopyTool

Nguồn điện: 220–240 V, 50–60 Hz, 8 A (max)
Mức độ tiêu thụ điện: 1,840 W—maximum power
1 Wh or less—Energy Saver Mode (Sleep Mode)
Thời gian khởi động lại: 120 seconds or less
Thời gian phục hồi: 30 seconds or less—from Auto Off Timer (Off Mode)
120 seconds or less—from Energy Saver Mode (Sleep Mode)
Mức công suất âm thanh: 49 dB or less—standby
72 dB or less—copying
Mức phát thải: Ozone—3.0 mg/h or less
Dust—4.0 mg/h or less
Styrene—1.8 mg/h or less
Benzene—0.05 mg/h
Total Volatile Organic Compounds (TVOC)—18 mg/h
Giảm các vật liệu nhạy cảm với môi trường: All free
Các tiêu chuẩn môi trường: Energy Star
EPEAT Gold
R&TTE—2.4 GHz, 5 GHz
C-Tick—Australia, New Zealand
RCM–New Zealand
EN62311 (CE marking)
RoHS
REACH
Directive 2006/66/EC
Directive 94/62/EC
WEEE
India E-waste
RECSI
Chuẩn an toàn: CE Marking
GS Mark (TUV certification authority)
CB Certification
CCC
EMC
EMC—Australia (RCM Mark)
NZEMC (RCM Mark)
Xác định các thành phần nhựa: All plastic components weighing more than 25 g are identified in accordance with DIN548490 and ISO11469.
