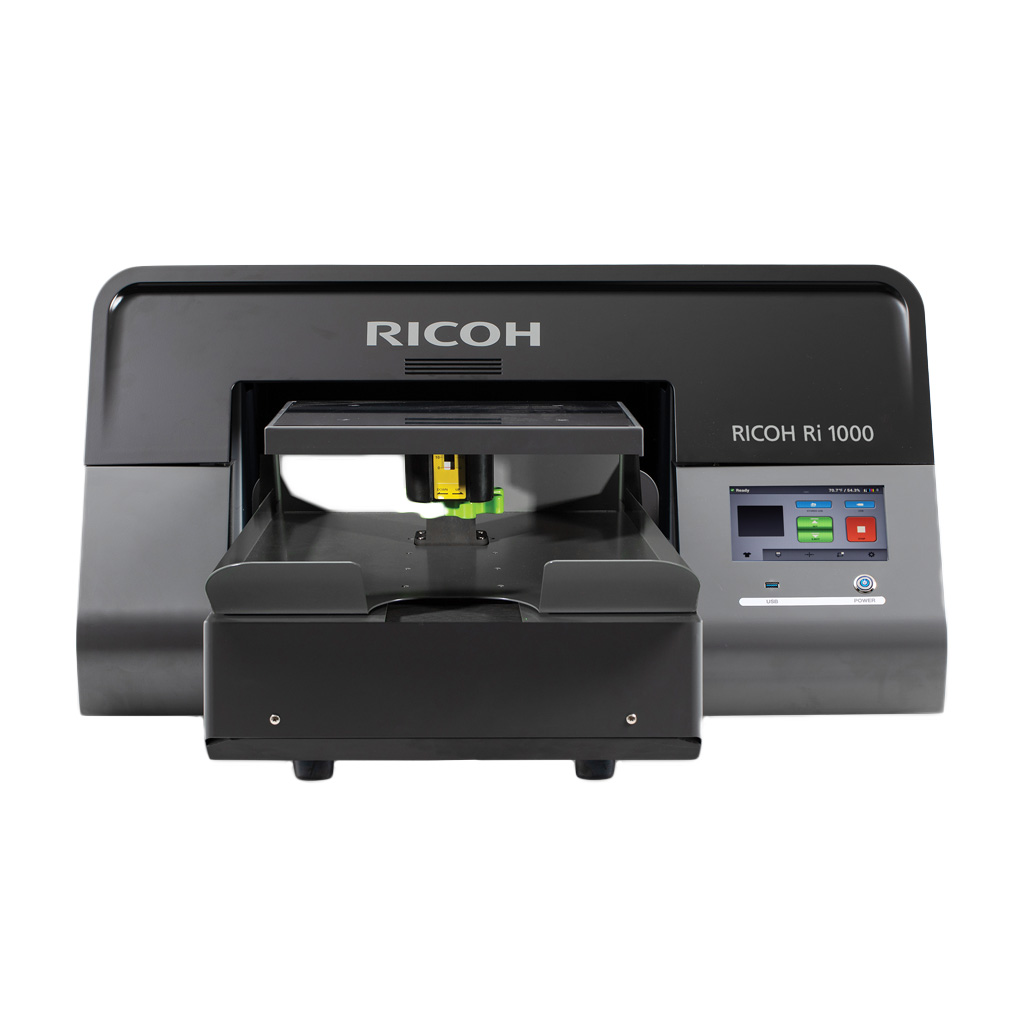

RICOH Ri 1000 เครื่องพิมพ์ Direct to Garment

Maximum 60 minutes maintenance time/1 person

Ink cartridge yield—standard
1,088 pages—CMYK
84 pages—W1,W2

Ink cartridge yield—high yield
2,724 pages—CMYK
208 pages—W1,W2

Ink cartridge capacity
200 ml—standard
500 ml—high yield

Cleaning cartridge capacity
200 ml

Waste ink bottle
300 pages

Substrates
Cotton, blend ratio 50–100%

Applications
T-shirt, tote bag, sweatshirt, polo shirt, hat, towel, handkerchief, bib

Garment thickness
30 mm max—without frame
4 mm max—with frame

Garment thickness sensor
Available

Garment types
Standard
Spectra USA, Spectra T-shirt 3100–148 g/m²

Recommended
Toms/heavy-weight T-shirt 00085-CVT—190 g/m²
Toms/tote bag—404 g/m²
Toms/tote bag—270 g/m²
Toms/tote bag—135 g/m²

Platen type
Dress

Platen sizes
406.4 x 508 mm/16” x 20”—large
320 x 457.2 mm/12.6” x 18”—medium
266.7 x 330.2 mm/10.5” x 13”—small

Table height adjustment
0–30 mm manual adjustment
3 mm/360º adjustment pitch
1.5 kg maximum load

4-Colour (4C)

155 seconds—High Image Quality Mode
95 seconds—Standard Mode
60 seconds—High Speed Mode

4C + White

260 seconds—High Image Quality Mode
205 seconds—Standard Mode
140 seconds—High Speed Mode

Note: Print speeds based on 10"x 8" at 25º C through the entire process—push start button, table moves forward, ink purged, printing, table moves back.

Pre-treatment
PowerBright Pre-treatment Liquid (Dupont P5002)

Post-treatment
Heat press
100 seconds/180^oC—4-colour
90 seconds/165^oC—4-colour + white

Temperature
15–32º C

Humidity
45–80% RH
