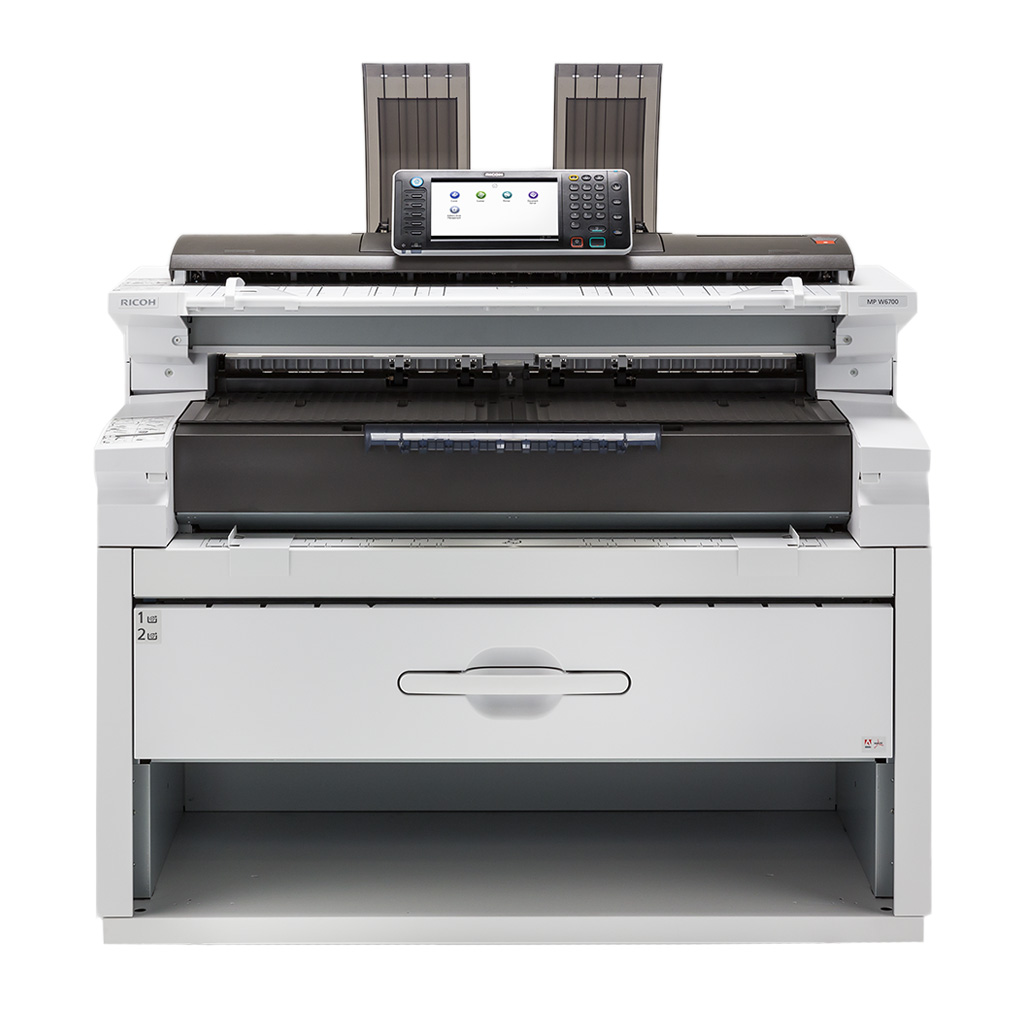

MP W6700SP Black & White Multifunction Wide Format Printer.

Print, copy, and scan
6.7 ppm—A1
600 dpi
15 m max print length

Large format printing, on a small office budget

Improve collaboration with a wide format black and white printer than can also copy,scan and send files. The MP W6700SP is designed for contractors,architects and engineers who need a cost-effective solution.

The quiet office achiever

Keep your office productive, without interruption. Download the Ricoh PrintCopy Tool to print and edit any file quickly to make changes and get approvals more quickly. Access shortcuts to your favourite settings with the customisable touchscreen panel. When last minute changes are made, quickly print updated documents and then scan to email, folder or USB/SD card. Noise levels are kept low to encourage focus, with a compact design to minimise space.

Safe and sound data

Be confident that the information you use and share is kept under wraps. A number of features are here to help with data security which is critical for your organisation’s success. Windows Authentication limits access to authorised users. PDF Encryption protects files and the optional Data Overwrite Security System keeps information in safe hands.

Energy saving
Quick Start-Up and Sleep Mode reduce energy consumption
Impressive colour scanning
Full colour scan resolution of up to 1,200 dpi
Remote management
View, monitor and change system settings from any web browser with Web Image Monitor
Compact size
Space saving design fits easily into small offices

Download PDF brochure

Specifications

기능: Copy, print, scan
컬러: No
프린터 컨트롤러 - 표준: GWNX
보관: 320 GB—shared with copy, printer, and scanner applications
문서 서버: 3,000 pages—storage
3,000—document
Maximum 1,000 pages per document
CPU: 1.06 GHz
메모리 - 표준: 2.5 GB
오퍼레이션 패널: 9-inch colour LCD operation panel

물리적 크기 (WxDxH)-기기 본체: 1,250 x 755 x 1,215 mm
무게 - 기기 본체: 267 kg

월간 평균 사용량: 350–470 metres
월간 최대 사용량: 3,000 metres
기기 수명: 1,683,000 copies or 5 years, whichever comes first
PM 사이클: 16,840 copies or 10,000 metres
MCBC: 7,700 copies or 4,565 metres
MCBF: 14,160 copies or 8,400 metres

소모품 용량: 1,430 m per 800g toner cartridge

30,000 m (1 kg x 2 bags) developer

Note: 2 bags required for setup.
All yields are measured with the A1/6% Ricoh chart.

표준 용지입력 용량(매수)

2 paper rolls—2-roll feeder
1 sheet—bypass tray

표준 용지출력 용량(매수)

Inner
99 sheets plain paper—A1 LEF
10 sheets application paper—A1 LEF 1 sheet film

Rear
10 sheets plain paper—A1 portrait, A0 SEF
1 sheet application paper—A1 portrait, A0 SEF 1 sheet film

용지 입력 구성 - 표준

1-sheet bypass tray, 2-roll feeder

용지 출력 구성 - 표준

Original stacker, rear straight through tray

용지 출력 구성 - 옵션

Original tray, original hanger, multi-stacker

최대 용지 크기

914 mm x 15,000 mm

미디어 무게(g/m2)

52.3–110

무제한 용지 공급

Supported—only with roll feeder option

인터페이스 - 표준: Gigabit Ethernet (10Base-T/100Base-Tx/1000Base-T)
USB 2.0
SD card slot
인터페이스 - 옵션: IEEE802.11a/g/n (Wireless LAN) with WPA support
IEEE 1284
SD card for NetWare printing
2 x option slots
USB Host interface for third party IC card reader
네트워크 프로토콜 - 표준: TCP/IP (IPv4, IPv6)
네트워크 프로토콜 - 옵션: IPX/SPX—with NetWare printing option
MIB 지원: Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)
SNMP v3 (RFC2574)

Private
Ricoh original MIB

복사 속도

6.7 cpm—A1 LEF

첫 복사 시간

18 seconds or less—A1 LEF, from roll feeder

복사 해상도

600 dpi

원본 크기

914.4 x 15,000 mm

960 mm—maximum original width
15,000 mm—maximum original length

원본 용지 너비

210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 680, 707, 728, 841, 880, 914.4 mm (marking only for 490, 680 mm)

Note: APS and rotate sort do not work for 440, 490, 620, 625, 680, 707, 880 mm

원본 급지

Sheet

원본 용지 출력

Rear straight through, original front upper

원본 적재기

Rear straight through
100 sheets—A2 LEF or less
1 sheet—A1 LEF or more

복사 크기

Maximum
914 x 15,000 mm—roll feeder
914 x 2,000 mm—bypass tray

Minimum
210 x 210 mm

복사용지 너비

210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914.4 mm

복사 용지 급지

Original rear straight through, original inner output

설정 위치

Centre

재생산 비율

1:1

용지 절단 방법

Preset size, synchronised cut, variable cut

회색조

256 levels—scanning
2 levels—writing

이미지 이동

Front, rear, left, right—0 to ± 200 x 1 mm

사전 설정 작업 매수

A0—100 or more
A1—100 or more
A2—200 or more
A3—400 or more
A4—400 or more

긴급 중지

Standard—key

공란 정보

Roll—5 degrees

확대 범위

25%–400% in 0.1% steps

확대 비율

141.4%, 200%, 282.8%, 400%

축소 비율

25%, 35.4%, 50%, 70.7%

이미지 농도 조정

Lighter to darker, 9 levels

이미지 농도 조정

9 steps—automatic, manual

복사 모드

Text mode, Text/Photo mode, Photo mode, Drawing mode, Generation Text mode, Generation Photo mode, Pasted Original mode, Background Line mode, Highlighter mode

용지 선택

Automatic Paper Selection (APS)
1st roll tray—available when roll feeder option is installed
2nd roll tray—only available when 2-roll feeder option is installed
A2 cutsheet tray (optional)
Bypass tray

자동 용지 선택(APS)

Supported

인터럽트 복사

Supported

전자적 분류

Standard—not available for custom sizes 880, 800, 707, 680, 660, 625, 620, 490, 440 mm

여백/지우기 조정

Margin adjustment

0–200 mm in 1 mm steps

Erase
Edge—3–50 mm
Inside—5 areas (A0 or less)
Outside—1 area (A0 or less)

이미지 조정

Image overlay, format overlay, negative or positive, mirroring, double copy, repeat copy (1-99, 10-key input)

스탬프

Preset
8 stamps; upper right, upper centre, upper left, centre right, centre, centre left, lower right, lower centre, lower left

User presets
Maximum 40 stamps; upper right, upper centre, upper left, centre right, centre, centre left, lower right, lower centre, lower left

Date stamp
Upper right, upper centre, upper left, lower right, lower centre, lower left

Page stamp
Upper right, upper centre, upper left, lower right, lower centre, lower left

기타 복사 기능

Non-standard size input, original insertion direction, designated width scan, half speed scan, sample copy (1st set out of multiple sets is printed) , partial copy (210–30,000 mm length can be defined as partial), combine (up to A2 size), clear (clear/stop key), copy auto clear, auto off, Energy Saver key, auto Energy Saver Mode, reset key, auto start, user code, key operator code, display of paper type, auto reduce and enlargement, user auto reduce and enlargement, preset reduce and enlargement, zoom

컬러 출력 속도

흑백 출력 속도

6.7 ppm

출력 프로세스

Electro-photographic printing

퓨징

Method
Heat and pressure

Roller materials
Teflon—heat roller
Silicone rubber—pressure roller

Fusing oil
Minimal used

토너 현상

Magnetic brush dual component dry toner system

출력 해상도

600 dpi

페이지 설명 언어(PDLs)

PostScript 3, RPCS, HP-GL, HP-GL2 (HP-RTL), TIFF (CALS)

프린터 드라이버 해상도

RPCS
600 dpi

PostScript 3
300, 600 dpi

RP-GL/RP-GL2
400, 600 dpi

RTIFF
200, 300, 400, 600 dpi

폰트

136 European fonts—PostScript 3

지원되는 파일 포멧

PrintTool software
HP-GL, HP-GL2, HP-RTL, TIFF, WMF, BMP, CALS, PCX, JPEG, PDF (up to v1.7), Calcomp, XLS, DOC/DOCX, PPT

Note: XLS, DOC/DOCX, PPT file formats are supported only when printing status is ready with installed printer driver

PrintCopyTool software—optional
DWG, DXF, DWF

출력 불가 영역

Leading edge—5 mm
Trailing edge—5 mm
Each side—5 mm

기타 출력 기능

Sample print, Locked print, Hold print, Stored print, Stored print (shared), Store and print, Store and print (shared), PDF Direct Print, Counter blade cleaning system, Charge system—Scorotron (corona charge), File format converter

스캔 속도

80 mm/second—black and white
26.7 mm/second—colour

스캔 방법

CIS

컬러 스캐닝

Supported

스캔 모드

Black and white
Drawing (default), Text, Text/Photo, Text/Drawing, Photo, Greyscale

Colour
Text/Photo, Photo

스캔 해상도

600 dpi, TWAIN—1,200 dpi

Optical resolution
Scan to email/folder—150, 200 (default), 300, 400, 600 dpi
TWAIN—150–1,200 dpi

자동 크기 감지

Auto detect, preset paper size, custom size

원본 크기

914.4 x 15,000 mm—maximum, 210 x 210 mm—minimum

이미지 편집

Erase border, positive/negative, mirror image

이미지 농도 조정

Lighter to darker, 9 levels

스캔 to 이메일

Requirement
SMTP (mail server) gateway and TCP/IP

Authentication
SMTP, POP before SMTP authentication

Resolution
150, 200 (default), 300, 400, 600 dpi

Supported file types
Multipage TIFF (default), single page TIFF, single- and multipage PDF, single page JPEG, single- and multipage high compression PDF, PDF/A

스캔 to 이메일 - 기타 기능

Compression method
1 bit—MH, MR, MMR (default). It can be changed in SP mode.
JPEG—Supported (default)
High compression—Not supported

Maximum email addresses
2.000 addresses

Maximum group address
Standard 100 groups (Maximum 500 addresses per group)

Maintain email addresses
Via operation panel, Web Image Monitor

Address search
Mainframe address book—email and folder search available
LDAP—email address search available

Input of destination email address
Via soft key—maximum 100 destinations per job

Maximum addresses per send
500—from HDD
100—Direct input
100—LDAP

Attention
To, cc, bcc

Body message
Manual input—supported
User presets—Not supported
Preset message—This e-mail includes attached file sent from <device name>.

Scan to email size
With restriction—128–102,400 KB, default 2,048 KB
Without restriction—975 MB

Other features
PDF security setting, program user setting—up to 10 programs, divide and send email, resend email

스캔 to 폴더

Protocols
SMB, FTP, NCP

Security
Client folder login (login name and password), encryption of login name and password during transmission

Resolution
150, 200 (default), 300, 400, 600 dpi

Search client folder
SMB—browsing directly to the designated folders
FTP—by client folder name

Supported file types
Multipage TIFF (default), single page TIFF, single- and multipage PDF, single page JPEG, high compression PDF, PDF/A

스캔 to 폴더 - 기타 기능

Register client folder address
Maximum 2,000 folders

Maintain client folder address
Direct input on operation panel, Web Image Monitor

Destination client folder address input via operation panel
SMB—network path->client folder->password
FTP server—network path->user account->password

Maximum folders per send
50

Group address
Maximum 100 destinations (to folder 50, to email 100)

Scan file size
Up to 2,000 MB

Scan to folders size when combined with scan to email
128–45,389 KB, default—2,048 KB (with restriction)

Other features
PDF security setting, program user setting, resend, destination combination

TWAIN 스캐닝 - 기타 기능

Standard size
A4–A0, B4–B1

Image adjustment
XY resolution, brightness, contrast, threshold/gamma adjustment, halftone pattern, rotation, mirror, tone reversal

Memory
Minimum required memory for operating system + 8 MB

CPU
Pentium 150 MHz or more, or minimum required CPU for operating system

HDD
More than 100 MB of disk space is required

Network protocols
TCP/IP, UDP/IP, ICMP/IP

TWAIN 스캐닝

Resolution
Black and white
150–1,200 dpi in 1 dpi steps

Colour
150–600 dpi

Scan mode
Standard, photo, OCR, filing

기타 스캔 기능

Preview before transmission, automatic file naming and number setting, simultaneous transmission, Encrypted PDF transmission, Edit (erase border, positive/negative, mirror image), network TWAIN as a bundled scanner driver

데이터 덮어쓰기 보안 시스템(DOSS) - 옵션: Type H—supports the requirements for Common Criteria certification, conforming to IEEE 2600.1
암호화: Authentication password encryption
Encrypted communication over Secure Sockets Layer (SSL)
HDD data encryption—optional HDD encryption unit is required
Locked print data encryption
Address book encryption
Encryption of data sent via Scan to email (S/MIME)
PDF encryption (password and transmission)
인증: User authentication—Windows (via Kerberos), LDAP, basic, user code
Administrator authentication
802.1x wired authentication
기타 보안 기능: Secure Internet Protocol communication (IPsec)
SNMPv3 support
Restrict use of destination for ‘scan to’ functions
Permit adding destinations for ‘scan to’ destinations

Windows: PostScript 3
Windows Vista
Windows 7
Windows 8
Windows 8.1
Windows 10
Windows Server 2003
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Macintosh: Mac OS 10.7 or later—PostScript 3
지원 언어: English, Brazilian Portuguese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish

표준: @Remote Embedded
Web Image Monitor
Device SDK
옵션: @Remote Office
Device Manager NX
PrintCopyTool

전원: 220–240 V, 50–60 Hz, 8 A (max)
소비 전력: 1,840 W—maximum power
1 Wh or less—Energy Saver Mode (Sleep Mode)
예열시간: 120 seconds or less
복구 시간: 30 seconds or less—from Auto Off Timer (Off Mode)
120 seconds or less—from Energy Saver Mode (Sleep Mode)
소음 수준: 49 dB or less—standby
72 dB or less—copying
배출 레벨: Ozone—3.0 mg/h or less
Dust—4.0 mg/h or less
Styrene—1.8 mg/h or less
Benzene—0.05 mg/h
Total Volatile Organic Compounds (TVOC)—18 mg/h
환경 민감 물질 저감: All free
환경 표준: Energy Star
EPEAT Gold
R&TTE—2.4 GHz, 5 GHz
C-Tick—Australia, New Zealand
RCM–New Zealand
EN62311 (CE marking)
RoHS
REACH
Directive 2006/66/EC
Directive 94/62/EC
WEEE
India E-waste
RECSI
안전 표준: CE Marking
GS Mark (TUV certification authority)
CB Certification
CCC
EMC
EMC—Australia (RCM Mark)
NZEMC (RCM Mark)
플라스틱 성분 식별: All plastic components weighing more than 25 g are identified in accordance with DIN548490 and ISO11469.
