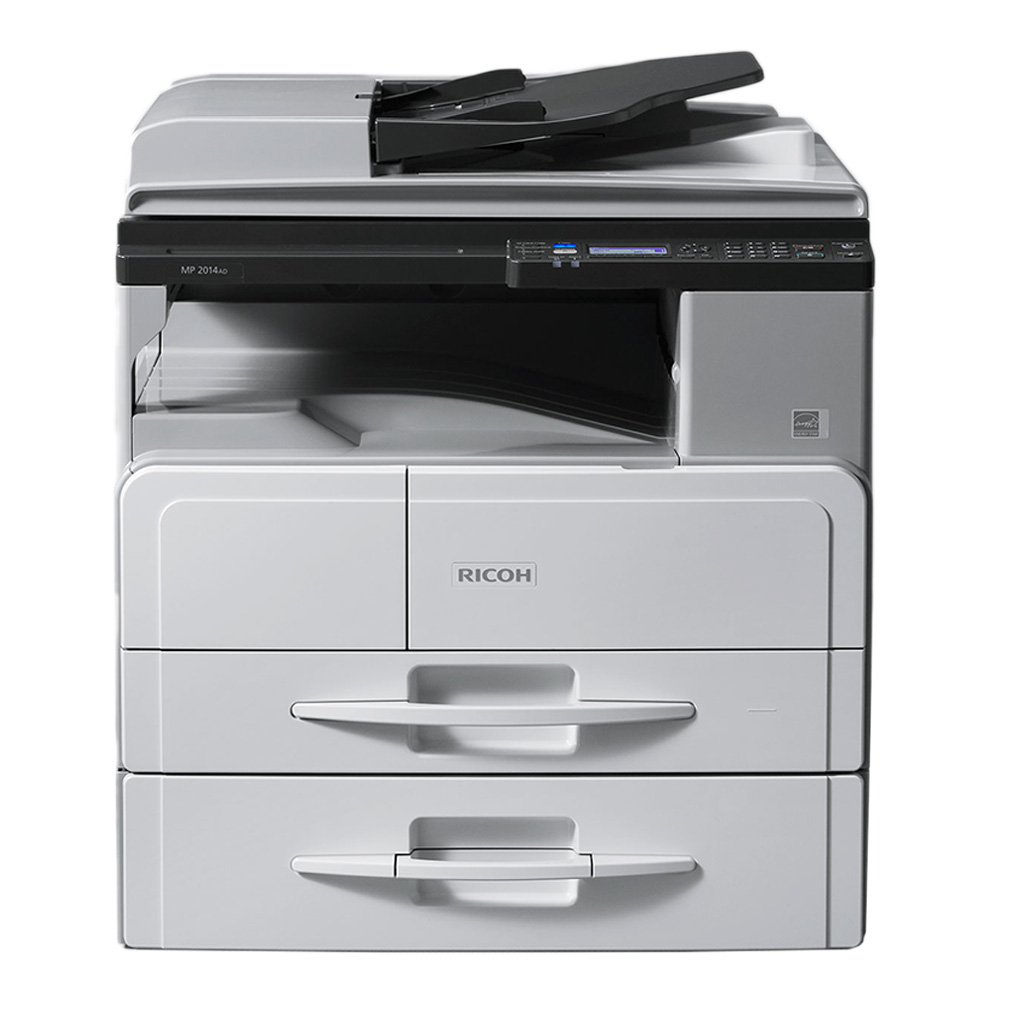

MP 2014AD A3 black and white multifunction printer

  • Copy, print, scan
  • Prints up to 20 ppm
  • 600 x 600 dpi
  • ARDF and duplex unit as standard
여기에서 기기 구성
Related Links
    Realistically affordable
    High yield toner lowers the cost per page (CPP) with up to 12,000 sheets per bottle

    Sophisticated features at an economic price

    The Ricoh MP 2014AD is a A3 black-and-white MFP with a brisk output speed of 20ppm, providing maximum efficiency for document processing in office. This reliable MFP is designed to provide you with robust performance in demanding office environments.

    1. Excellent productivity
      Print on a variety of paper types via the standard bypass tray, which supports special media such as overhead transparencies and envelopes within a 52–216 g/m2 weight range.
    2. Easy jam removal
      Obtain better access via the mainframe door that opens sideways and handles have also been placed on the fusing unit to facilitate easier removal of jammed paper.
    3. Low TCO
      Low Typical Electricity Consumption (TEC) value of 1.75 kWh and power use during Energy Saver Mode (Sleep Mode) is less than 4 W.
    4. Customisable shortcut keys
      Two hard keys on the left side of the operation panel that can be customised to act as shortcut keys to specific functions such as folder print, voucher copy mode and ID card scan.
    Download PDF brochure

    Specifications

    기능
    Copy, print, scan
    컬러
    No
    메모리 - 표준
    256 MB
    오퍼레이션 패널
    4-line LCD
    표준 용지입력 용량(매수)
    350
    최대 용지입력 용량(매수)
    1,350
    표준 용지출력 용량(매수)
    250
    최대 용지출력 용량(매수)
    250
    용지 입력 구성 - 표준
    250-sheet paper input tray, 100-sheet bypass tray, duplex unit, 50-sheet ARDF
    용지 출력 구성 - 표준
    250-sheet face-down output tray
    지원하는 미디어

    Standard paper input tray
    Thin paper, Plain paper 1, Plain paper 2, Recycled paper, Colour paper, Special paper, Middle thick paper, Printed paper, Pre-printed paper, Pre‑punched paper, Letterhead, Bond paper, Cardstock

    Note: Thin paper only for single-sided printing.

    Bypass tray
    Thin paper, Plain paper 1, Plain paper 2, Recycled paper, Colour paper, Special paper, Middle thick paper, Printed paper, Pre-printed paper, Pre‑punched paper, Letterhead, Bond paper, Cardstock, Thick paper 1, Thick paper 2, Label paper, OHP transparencies, Envelope

    Note: Thin paper and Thick Paper 2 only for single-sided printing.

    Paper bank PB2020
    Plain paper 1, Plain paper 2, Recycled paper, Colour paper, Special paper, Middle thick paper, Printed paper, Pre-printed paper, Pre‑punched paper, Letterhead, Bond paper, Cardstock

    최대 용지 크기
    A3
    미디어 무게(g/m2)
    52–216
    인터페이스 - 표준
    USB 2.0
    인터페이스 - 옵션
    10Base-T/100Base-Tx (Ethernet)—available with optional DDST unit Type M16
    복사 속도
    20 cpm—A4 LEF
    첫 복사 시간
    10 seconds or less—A4 LEF, Tray 1
    복사 해상도
    300 x 600 dpi—standard mode
    600 x 600 dpi—fine mode
    확대 범위
    50%–200%
    양면 복사
    Supported
    책 복사
    Not available
    ID카드 복사
    Supported—requires DDST unit Type M16 option
    흑백 출력 속도
    20 ppm
    출력 해상도
    600 x 600 dpi
    프린터 드라이버
    DDST (GDI)—optional DDST unit Type M16 is required for network printing and scanning
    양면 출력
    Supported
    스캔 속도
    200 dpi, A4
    15 ipm—black and white
    6 ipm—colour
    컬러 스캐닝
    Supported
    스캔 해상도
    100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi; default 200 x 200 dpi
    스캔 to 폴더
    Protocols
    SMB 1.0

    Security
    Not available

    Resolution
    100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi; default 200 x 200 dpi

    Search for client folders
    Not available

    Home folder over LDAP
    Not available

    Maximum client folders per send
    1 folder

    Simultaneous transmission
    Not available

    Maximum group addresses
    Not available

    Input file name
    Not available

    Input subject
    Not available

    Scan to folders file size
    1–5 MB

    Scan to folders file types
    Full colour, greyscale
    JPEG, PDF

    Black and white
    TIFF, PDF

    Program user settings
    Not available

    Resend
    Not available
    TWAIN 스캐닝
    Scan speed—A4 LEF, 200 x 200 dpi
    Black and white, single-sided
    10 ipm

    Colour, single-sided
    5 ipm

    Scan resolution
    75 x 75 dpi, 100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi, 300 x 300 dpi, 600 x 600 dpi

    Scan mode
    Full colour, greyscale, black and white

    Image adjustment
    Gamma, sharpness, brightness adjustment, contrast, saturation, hue

    Endorse
    Not available

    Stamp originals
    Not available

    Supported Windows operating systems
    Windows Server 2003, R2
    Windows Vista
    Windows Server 2008, R2
    Windows 7
    Windows 8
    Windows 8.1
    Windows Server 2012, R2
    Windows
    Windows Server 2003
    Windows Server 2003 R2
    Windows Server 2008
    Windows Server 2008 R2
    Windows Vista
    Windows 7
    Windows 8
    Windows 8.1
    Windows Server 2012
    Windows Server 2012 R2
    표준
    Web Image Monitor
    옵션
    Printer as a Service (PaaS)
    전원
    220–240 V, 50–60 Hz
    소비 전력
    950 W—Maximum power
    420 W—Operating power
    111 W—Ready Mode
    55 W or less—Low Power Mode
    12.55 W or less—ARDF
    27 W or less—500-sheet paper bank PB2020
    4.0 W—Energy Saver Mode (Sleep Mode)
    일반 전기 소비량(TEC)
    1.75 kWh
    예열시간
    33 seconds or less
    전력 절약 모드
    1 minute shift time—Energy Saver Mode (Sleep Mode)
    30 seconds shift time—Low Power Mode
    복구 시간
    30 seconds—Energy Saver Mode (Sleep Mode)
    10 seconds—Low Power Mode
