IP CW2200

IP CW2200

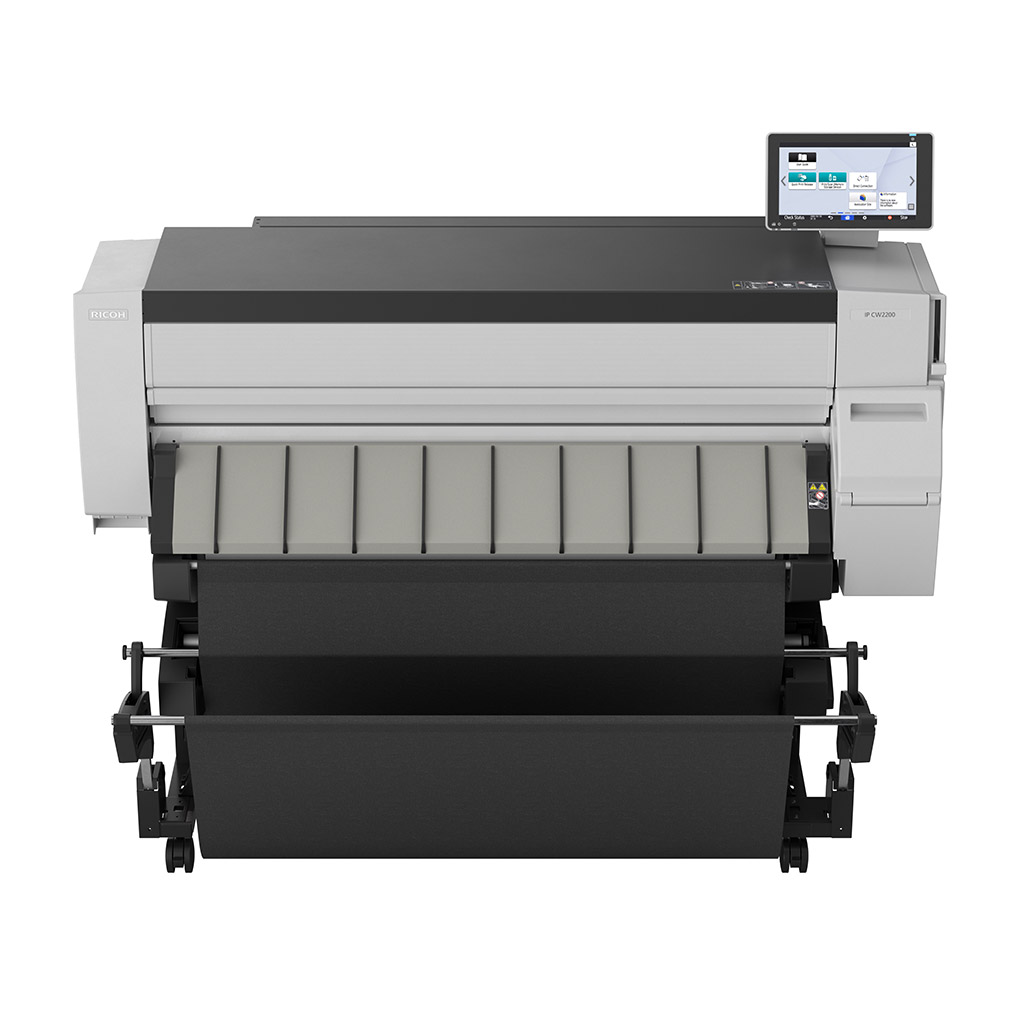

The IP CW2200 is a wide format printer with a maximum A1 print speed of 3.8 pages per minute (ppm) for black and white, and 2.1 ppm for colour.

The IP CW2200 features Ricoh’s water-resistant, pigment-based 4-colour ink system and support for a maximum print length of 33 m.

Equipped with the latest Ricoh GWNX controller and 10.1” Smart Operation Panel G2.5, the IP CW2200 offers users enhanced functionality and supports a range of solutions and apps to meet individual workflow requirements.

Other highlights include Genuine Adobe PostScript 3 as standard, automatic paper roll setting, and a flat top that doubles as an extra work space for operators.

The IP CW2200 is targeted mainly at small businesses in the Architecture, Engineering, and Construction (AEC), Manufacturing, Government, and Pay For Print (PFP) industries.

Roll Unit RU6570
Increases the roll capacity from standard 1 roll to 2 rolls total.

Number of paper rolls: 1 roll
Roll paper size: 279.4 mm—minimum width, 914 mm—maximum width
Roll paper diameter 176 mm
Dimensions (W x D x H): 1,108 x 432 x 398 mm
Weight: 14.5 kg
Roll Holder Type M23

Attached to both ends of a paper roll to provide additional flange inserts that grip the paper roll and mount it in the paper roll tray.

Dimensions (W x H x D): 1,049 x 160 x 160 mm
Weight: 1.5 kg or less

RICOH Print Tool Ver.2
RICOH Print Tool Ver.2
NFC Card Reader Type M23
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
RICOH Antimicrobial Screen Protector Type B

A protective sheet with antimicrobial properties for Ricoh devices equipped with a 10.1-inch Smart Operation Panel version G2.5 (full flat type).

The screen protector works by generating silver ion (Ag+) from the sheet surface which then connects with bacterial enzymes, blocking replication and destroying the harmful cells.

The antimicrobial effect is ISO 22196-certified under the Society of Industrial Technology for Antimicrobial Articles (SIAA).

NOTE: Please check the availability of this option with your local sales company.

Standard inclusions

  • 10.1" Smart Operation Panel
  • 320 GB HDD
  • 4 GB RAM
  • Automatic roll set
  • Workable flat top

Current configuration

IP CW2200
1384 mm x660 mm x1117 mm (W x D x H)
100 kg
Selected Options:
    IP CW2200
